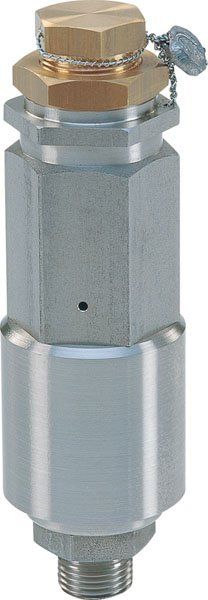

Pratissoli SX2 Safety Relief Valve - AISI 316

Pratissoli SX2 safety relief valve in AISI 316 stainless steel with a 90 bar maximum working pressure and a 108 bar set pressure, for 15-190 LPM and water up to 60°C, on systems up to 81.5hp, 60kW. It is factory set and sealed, has a 1/2" BSP male inlet and is not PED certified.

Specification

• Part number: SX2/90
• Brand: Pratissoli
• Model: SX2
• Maximum working pressure: 90 bar
• Set pressure: 108 bar
• Flow: 15-190 LPM
• Maximum system power: 81.5hp, 60kW
• Construction: AISI 316 stainless steel
• Setting: factory set and sealed
• Certification: not PED certified
• Maximum water temperature: 60°C
• Inlet: 1/2" BSP male
