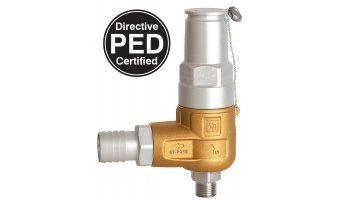

Pratissoli S723 Safety Relief Valve

Pratissoli S723 certified safety relief valve for 180 bar maximum working pressure, factory set and sealed at 216 bar, for flows of 15 to 180 LPM. It has a brass body with stainless steel internals and is PED certified.

Specification

• Part number: S723/180
• Maximum working pressure: 180 bar
• Set pressure: 216 bar, factory set and sealed
• Flow: 15 to 180 LPM
• Maximum water temperature: 85°C
• Certification: PED 97/23/CE category II
• Body: brass, stainless steel internals
• Inlet: 1/2" BSP male
• Bypass: 30.4mm hose barb

Contact the sales office for installation advice.
