Pratissoli S1510 Certified Safety Relief Valve

Overview

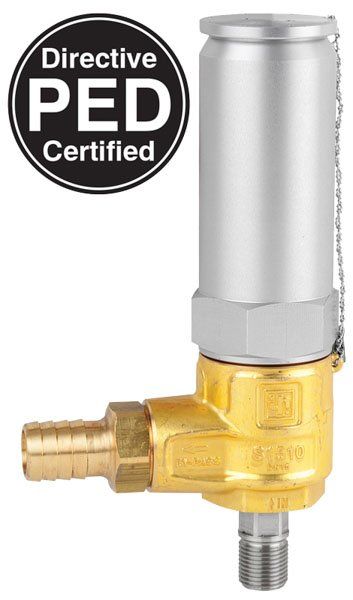

Pratissoli S1510 PED certified safety relief valve, factory set and sealed for a system working pressure of 900 bar. It opens at a set pressure of 1080 bar and handles 20 to 105 litres per minute.

Each valve is issued with a dedicated certificate with a unique serial number affixed to the valve and manual. Generic calibration certificates cannot be supplied.

Specification

• Part number: S1510/900
• 900 Bar max working pressure
• 1080 Bar set pressure
• 20-105 Lpm flow
• 30°C max water temperature
• Factory set & sealed
• PED certified to 97/23/CE cat. II
• Brass body - St.steel internals
• 1/2"BSPM inlet
• 25mm hose barb bypass

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
