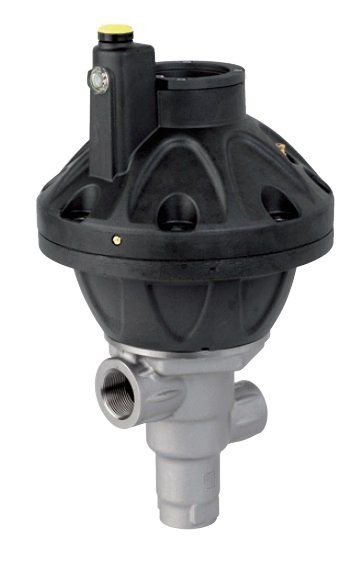

Pratissoli PN2S Pneumatic Pressure Regulator

Pratissoli PN2S pneumatic pressure regulator rated to 200 bar and 300 LPM, for water up to 60°C, operated at 7.0 bar air pressure. It has an aluminium upper body and a stainless steel lower body, with 1" BSP female inlet and outlet, a 1 1/4" BSP female bypass and 1/4" BSP female air ports.

Specification

• Part number: PN2S/200
• Brand: Pratissoli
• Model: PN2S
• Maximum pressure: 200 bar
• Maximum flow: 300 LPM
• Maximum water temperature: 60°C
• Air pressure: 7.0 bar
• Upper body: aluminium
• Lower body: stainless steel
• Inlet: 1" BSP female
• Outlet: 1" BSP female
• Bypass: 1 1/4" BSP female
• Air ports: 1/4" BSP female
