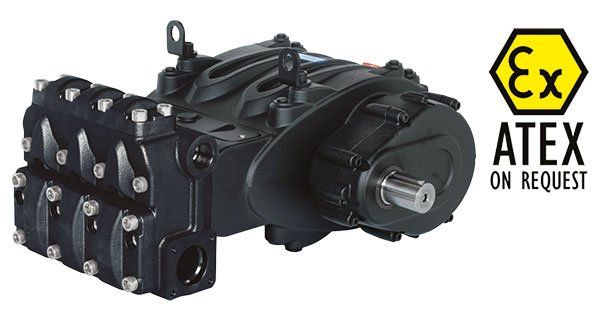

Pratissoli MX LP Series Pump & 2600 Rpm Gearbox MX55-GB26

Pratissoli MX low pressure series pump with a 2600 rpm gearbox (3.211:1 reduction), rated to 140 bar at 399 LPM, with a 50mm male shaft and an HR treated cast iron manifold. It has a 2" BSP female inlet and a 1" BSP female outlet.

Specification

• Part number: MX55-GB26
• Brand: Pratissoli
• Series: MX low pressure
• Performance: 140 bar, 399 LPM
• Power: 145hp, 107kW
• Gearbox input speed: 2600 rpm
• Gearbox ratio: 3.211:1 reduction
• Shaft: 50mm male
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Inlet: 2" BSP female
• Outlet: 1" BSP female
