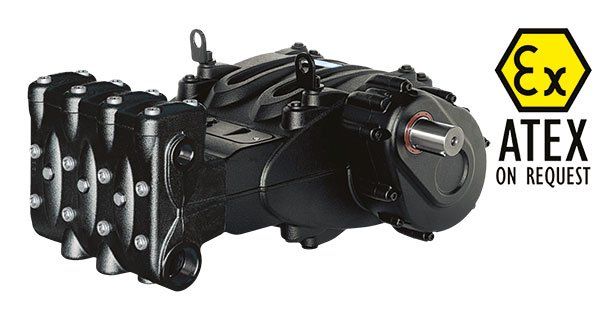

Pratissoli MX HP Series Pump and 2600 Rpm Gearbox MX36-GB26

Pratissoli MX high pressure series pump with a 2600 rpm gearbox (3.211:1 reduction), rated to 350 bar at 171 LPM, with a 50mm male shaft and an HR treated cast iron manifold. It has an 80mm flanged inlet port and a 1 1/4" BSP female outlet.

Specification

• Part number: MX36-GB26
• Brand: Pratissoli
• Series: MX high pressure
• Performance: 350 bar, 171 LPM
• Power: 155hp, 114kW
• Gearbox input speed: 2600 rpm
• Gearbox ratio: 3.211:1 reduction
• Shaft: 50mm male
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Inlet: 80mm flanged port
• Outlet: 1 1/4" BSP female
