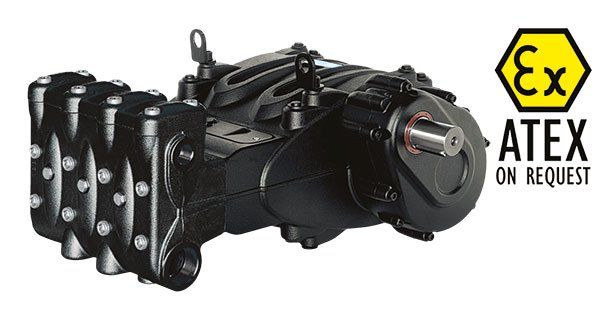

Pratissoli MX HP Series Pump and 1800 Rpm Gearbox MX32-GB18

Pratissoli MX high pressure series pump with an 1800 rpm gearbox (2.238:1 reduction), rated to 400 bar at 135 LPM, with a 50mm male shaft and an HR treated cast iron manifold. It has an 80mm flanged inlet port and a 1 1/4" BSP female outlet.

Specification

• Part number: MX32-GB18
• Brand: Pratissoli
• Series: MX high pressure
• Performance: 400 bar, 135 LPM
• Power: 140hp, 103kW
• Gearbox input speed: 1800 rpm
• Gearbox ratio: 2.238:1 reduction
• Shaft: 50mm male
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Inlet: 80mm flanged port
• Outlet: 1 1/4" BSP female
