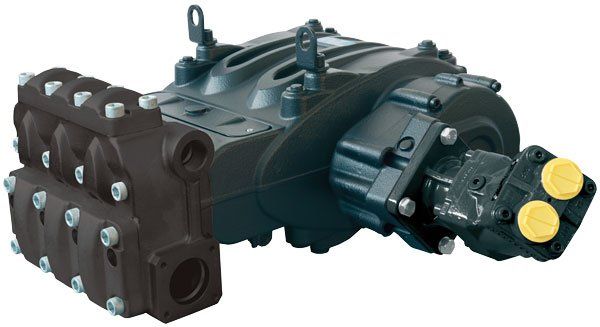

Pratissoli MW55-GB18 HYPACK Motorpump Unit MW55-GB18-HYP130

Pratissoli MW55-GB18 HYPACK motor pump unit with a 130cc piston motor, rated at 100 bar and 399 LPM water flow at 1800 rpm.

Specification

• Part number: MW55-GB18-HYP130
• Pump and gearbox: Pratissoli MW55-GB18
• Maximum water pressure: 100 bar
• Water flow: 399 LPM at 1800 rpm
• Motor: 130cc piston motor
• Oil flow: 234 LPM at 1800 rpm
• Oil pressure: 240 bar at 100 bar water pressure
• Manifold: treated cast iron
• Maximum water temperature: 40°C

Other motor options are available. Contact the sales office for installation advice.
