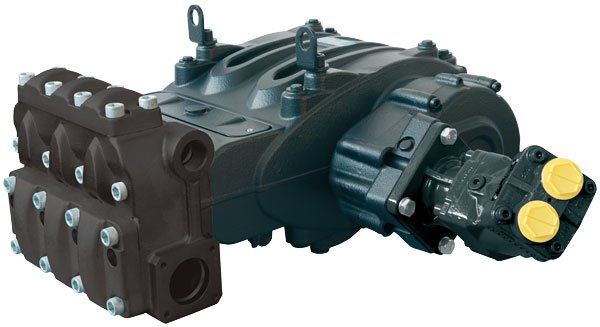

Pratissoli MW45-GB22 HYPACK Motorpump Unit MW45-GB22-HYP84

Pratissoli MW45-GB22 HYPACK motor pump unit with an 84cc piston motor, rated at 155 bar and 267 LPM water flow at 2200 rpm.

Specification

• Part number: MW45-GB22-HYP84
• Pump and gearbox: Pratissoli MW45-GB22
• Maximum water pressure: 155 bar
• Water flow: 267 LPM at 2200 rpm
• Motor: 84cc piston motor
• Oil flow: 185 LPM at 2200 rpm
• Oil pressure: 310 bar at 155 bar water pressure
• Manifold: treated cast iron
• Maximum water temperature: 40°C

Other motor options are available. Contact the sales office for installation advice.
