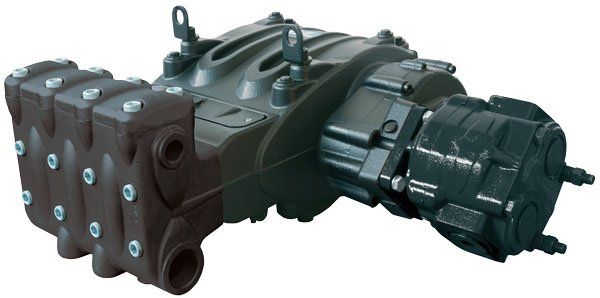

Pratissoli MW40-GB22 HYPACK Motorpump Unit MW40-GB22-HYG184

Pratissoli MW40-GB22 HYPACK motor pump unit with a 184cc gear motor, rated at 210 bar and 211 LPM water flow at 2200 rpm.

Specification

• Part number: MW40-GB22-HYG184
• Pump and gearbox: Pratissoli MW40-GB22
• Maximum water pressure: 210 bar
• Water flow: 211 LPM at 2200 rpm
• Motor: 184cc gear motor
• Oil flow: 405 LPM at 2200 rpm
• Oil pressure: 150 bar at 210 bar water pressure
• Manifold: treated cast iron
• Maximum water temperature: 40°C

Other motor options are available. Contact the sales office for installation advice.
