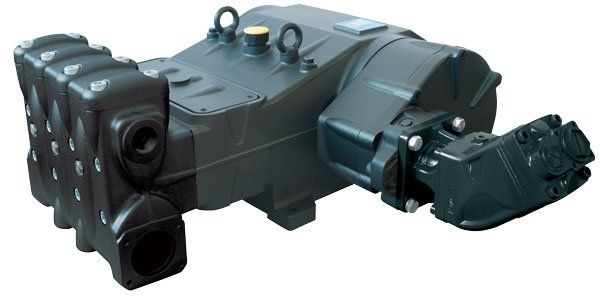

Pratissoli MK2S HYPACK Motorpump Unit MK2S-65-HYP130

Pratissoli MK2S-65 HYPACK motorpump unit with a 130cc hydraulic piston motor, delivering up to 150 bar water pressure with a water flow of 484 LPM at 2500 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 325 LPM at 2500 rpm with an oil pressure of 300 bar at 150 bar working pressure.

Specification

• Part number: MK2S-65-HYP130
• Brand: Pratissoli
• Model: MK2S-65 HYPACK motorpump unit
• Maximum water pressure: 150 bar
• Water flow: 484 LPM at 2500 rpm
• Hydraulic motor: 130cc piston motor
• Oil flow: 325 LPM at 2500 rpm
• Oil pressure: 300 bar at 150 bar working pressure
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
