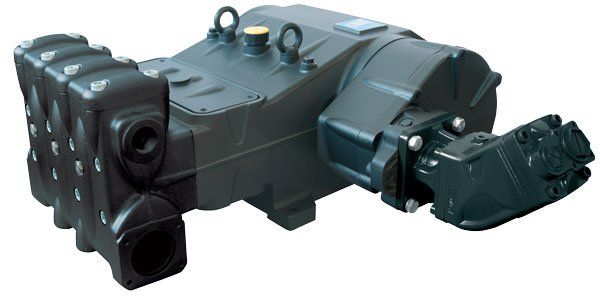

Pratissoli MK2-60 HYPACK Motorpump Unit MK2-60-HYP110

Pratissoli MK2-60 HYPACK motorpump unit with a 110cc hydraulic piston motor, delivering up to 170 bar water pressure with a water flow of 346 LPM at 2050 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 226 LPM at 2050 rpm with an oil pressure of 340 bar at 170 bar working pressure.

Specification

• Part number: MK2-60-HYP110
• Brand: Pratissoli
• Model: MK2-60 HYPACK motorpump unit
• Maximum water pressure: 170 bar
• Water flow: 346 LPM at 2050 rpm
• Hydraulic motor: 110cc piston motor
• Oil flow: 226 LPM at 2050 rpm
• Oil pressure: 340 bar at 170 bar working pressure
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
