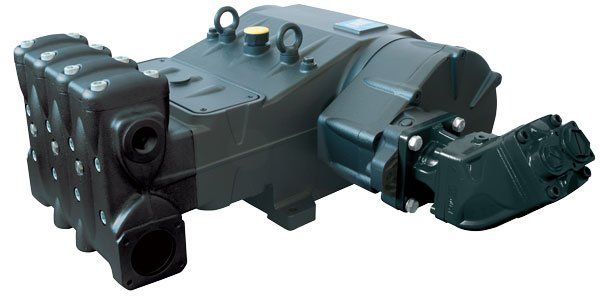

Pratissoli MK2-45 HYPACK Motorpump Unit MK2-45-HYP130

Pratissoli MK2-45 HYPACK motorpump unit with a 130cc hydraulic piston motor, delivering up to 300 bar water pressure with a water flow of 194 LPM at 2050 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 267 LPM at 2050 rpm with an oil pressure of 290 bar at 300 bar working pressure.

Specification

• Part number: MK2-45-HYP130
• Brand: Pratissoli
• Model: MK2-45 HYPACK motorpump unit
• Maximum water pressure: 300 bar
• Water flow: 194 LPM at 2050 rpm
• Hydraulic motor: 130cc piston motor
• Oil flow: 267 LPM at 2050 rpm
• Oil pressure: 290 bar at 300 bar working pressure
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
