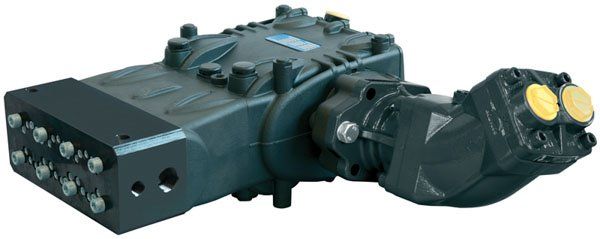

Pratissoli KTV14 HYPACK Motorpump Unit KV14-HYP34

Pratissoli KTV14 HYPACK motorpump unit: a high pressure plunger pump driven by a 34cc piston hydraulic motor, rated to 800 bar with 17.4 litres per minute at 1450 rpm and 21.0 litres per minute at 1750 rpm.

Specification

• Part number: KV14-HYP34
• 800 Bar max water pressure
• 17.4 Lpm water flow @ 1450 Rpm
• 21.0 Lpm water flow @ 1750 Rpm
• 34cc piston motor
• Oil flow 49 Lpm @ 1450 Rpm
• Oil flow 60 Lpm @ 1750 Rpm
• Oil 390 Bar @ 800 Bar WP
• HR treated st.steel pump manifold
• 30°C max water temperature
• Other motor options available

Before installation: Check the size, thread and rating against your existing part or system before ordering.
