Pratissoli KTV12 HYPACK Motorpump Unit KV12-HYP34

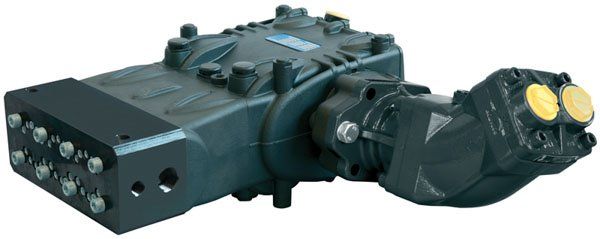

Pratissoli KTV12 HYPACK motorpump unit: a high pressure plunger pump driven by a 34cc piston hydraulic motor, rated to 1100 bar with 12.8 litres per minute at 1450 rpm and 15.4 litres per minute at 1750 rpm.

Specification

• Part number: KV12-HYP34
• 1100 Bar max water pressure
• 12.8 Lpm water flow @ 1450 Rpm
• 15.4 Lpm water flow @ 1750 Rpm
• 34cc piston motor
• Oil flow 49 Lpm @ 1450 Rpm
• Oil flow 60 Lpm @ 1750 Rpm
• Oil 390 Bar @ 1100 Bar WP
• HR treated st.steel pump manifold
• 30°C max water temperature
• Other motor options available

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
