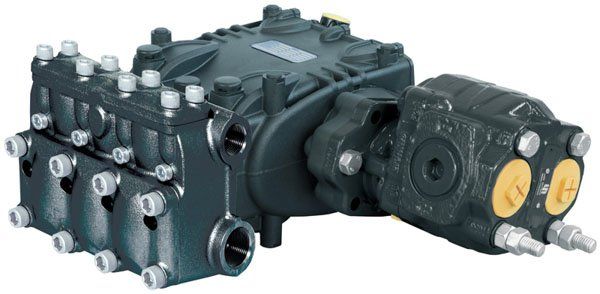

Pratissoli KT40 HYPACK Motorpump Unit KT40-HYP34

Pratissoli KT40 HYPACK motorpump unit with a 34cc hydraulic piston motor, delivering up to 100 bar water pressure with a water flow of 142 LPM at 1450 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 49 LPM at 1450 rpm with an oil pressure of 390 bar.

Specification

• Part number: KT40-HYP34
• Brand: Pratissoli
• Model: KT40 HYPACK motorpump unit
• Maximum water pressure: 100 bar
• Water flow: 142 LPM at 1450 rpm
• Hydraulic motor: 34cc piston motor
• Oil flow: 49 LPM at 1450 rpm
• Oil pressure: 390 bar
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
