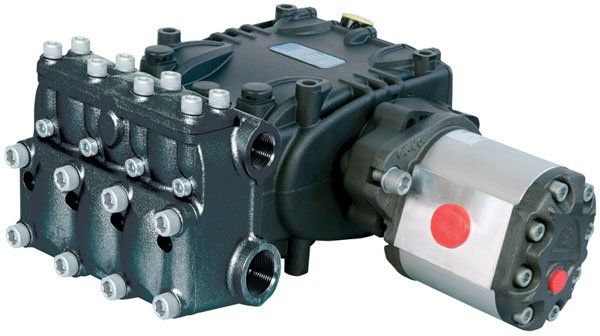

Pratissoli KT40 HYPACK Motorpump Unit KT40-HYG48

Pratissoli KT40 HYPACK motorpump unit with a 48cc hydraulic gear motor, delivering up to 100 bar water pressure with a water flow of 142 LPM at 1450 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 70 LPM at 1450 rpm with an oil pressure of 280 bar.

Specification

• Part number: KT40-HYG48
• Brand: Pratissoli
• Model: KT40 HYPACK motorpump unit
• Maximum water pressure: 100 bar
• Water flow: 142 LPM at 1450 rpm
• Hydraulic motor: 48cc gear motor
• Oil flow: 70 LPM at 1450 rpm
• Oil pressure: 280 bar
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
