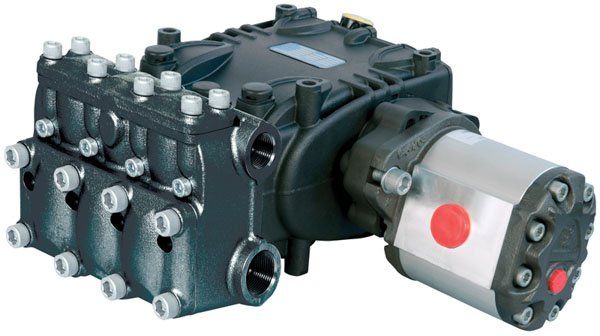

Pratissoli KT36 HYPACK Motorpump Unit KT36-HYG48

Pratissoli KT36 HYPACK motorpump unit: a high pressure plunger pump driven by a 48cc gear hydraulic motor, rated to 120 bar with 115 litres per minute at 1450 rpm and 125 litres per minute at 1580 rpm. At 1580 rpm the maximum pressure is 125 bar.

Specification

• Part number: KT36-HYG48
• 120 Bar max water pressure*
• 115 Lpm water flow @ 1450 Rpm
• 125 Lpm water flow @ 1580 Rpm
• 48cc gear motor
• Oil flow 70 Lpm @ 1450 Rpm
• Oil flow 76 Lpm @ 1580 Rpm
• Oil 270 Bar @ 120 Bar WP (280 Bar @ 125 Bar WP)
• HR treated cast iron manifold
• 40°C max water temperature
• Other motor options available
• *125 Bar max @ 1580 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
