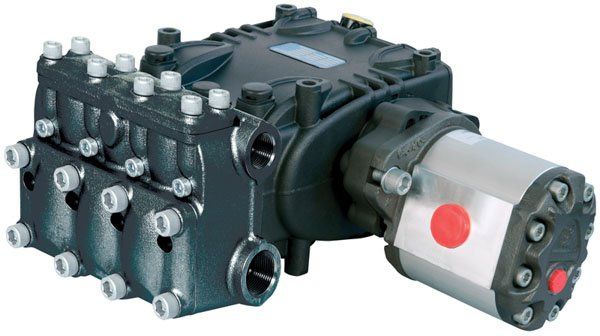

Pratissoli KT34 HYPACK Motorpump Unit KT34-HYG48

Pratissoli KT34 HYPACK motorpump unit with a 48cc hydraulic gear motor, delivering up to 150 bar water pressure with a water flow of 103 LPM at 1450 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 70 LPM at 1450 rpm with an oil pressure of 300 bar.

Specification

• Part number: KT34-HYG48
• Brand: Pratissoli
• Model: KT34 HYPACK motorpump unit
• Maximum water pressure: 150 bar
• Water flow: 103 LPM at 1450 rpm
• Hydraulic motor: 48cc gear motor
• Oil flow: 70 LPM at 1450 rpm
• Oil pressure: 300 bar
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
