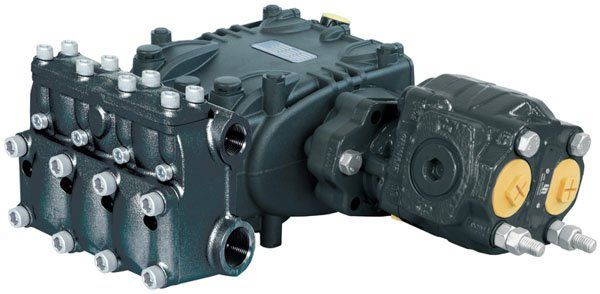

Pratissoli KT30 HYPACK Motorpump Unit KT30-HYP47

Pratissoli KT30 HYPACK motorpump unit: a high pressure plunger pump driven by a 47cc piston hydraulic motor, rated to 175 bar with 80 litres per minute at 1450 rpm and 96 litres per minute at 1750 rpm. At 1750 rpm the maximum pressure is 140 bar.

Specification

• Part number: KT30-HYP47
• 175 Bar max water pressure*
• 80 Lpm water flow @ 1450 Rpm
• 96 Lpm water flow @ 1750 Rpm
• 47cc piston motor
• Oil flow 68 Lpm @ 1450 Rpm
• Oil flow 82 Lpm @ 1750 Rpm
• Oil 280 Bar @ 175 Bar WP (230 Bar @ 140 Bar WP)
• HR treated cast iron manifold
• 40°C max water temperature
• Other motor options available
• *140 Bar max @ 1750 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
