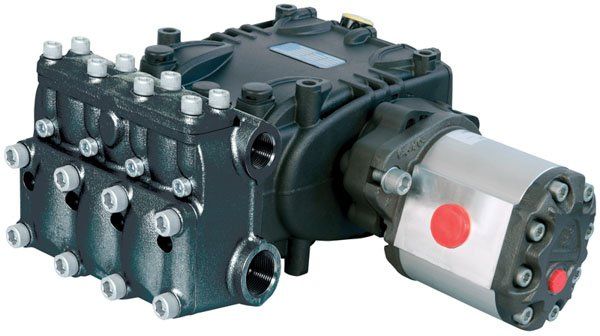

Pratissoli KT30 HYPACK Motorpump Unit KT30-HYG70

Pratissoli KT30 HYPACK motorpump unit with a 70cc hydraulic gear motor, delivering up to 140 bar water pressure with a water flow of 96 LPM at 1750 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 123 LPM at 1750 rpm with an oil pressure of 150 bar.

Specification

• Part number: KT30-HYG70
• Brand: Pratissoli
• Model: KT30 HYPACK motorpump unit
• Maximum water pressure: 140 bar
• Water flow: 96 LPM at 1750 rpm
• Hydraulic motor: 70cc gear motor
• Oil flow: 123 LPM at 1750 rpm
• Oil pressure: 150 bar
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
