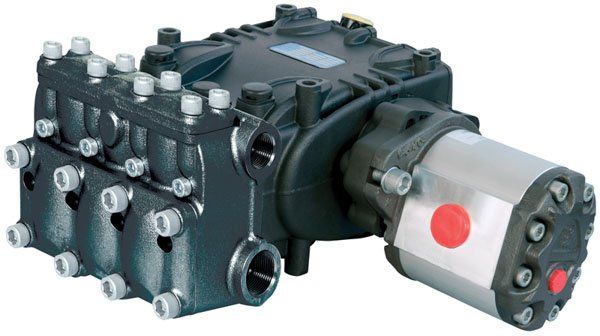

Pratissoli KT30 HYPACK Motorpump Unit KT30-HYG53

Pratissoli KT30 HYPACK motorpump unit with a 53cc hydraulic gear motor, delivering up to 140 bar water pressure with a water flow of 96 LPM at 1750 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 93 LPM at 1750 rpm with an oil pressure of 200 bar.

Specification

• Part number: KT30-HYG53
• Brand: Pratissoli
• Model: KT30 HYPACK motorpump unit
• Maximum water pressure: 140 bar
• Water flow: 96 LPM at 1750 rpm
• Hydraulic motor: 53cc gear motor
• Oil flow: 93 LPM at 1750 rpm
• Oil pressure: 200 bar
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
