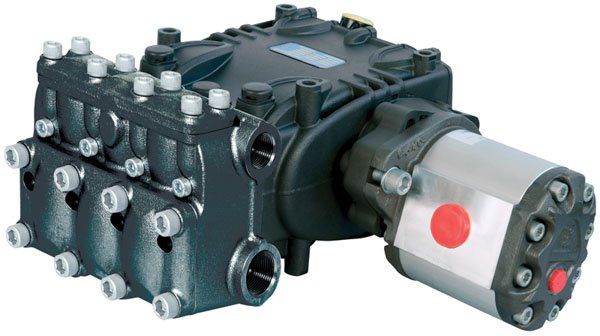

Pratissoli KT28 HYPACK Motorpump Unit KT28-HYG48

Pratissoli KT28 HYPACK motorpump unit: a high pressure plunger pump driven by a 48cc gear hydraulic motor, rated to 200 bar with 70 litres per minute at 1450 rpm and 84 litres per minute at 1750 rpm. At 1750 rpm the maximum pressure is 175 bar.

Specification

• Part number: KT28-HYG48
• 200 Bar max water pressure*
• 70 Lpm water flow @ 1450 Rpm
• 84 Lpm water flow @ 1750 Rpm
• 48cc gear motor
• Oil flow 70 Lpm @ 1450 Rpm
• Oil flow 84 Lpm @ 1750 Rpm
• Oil 270 Bar @ 200 Bar WP (240 Bar @ 175 Bar WP)
• HR treated cast iron manifold
• 40°C max water temperature
• Other motor options available
• *175 Bar max @ 1750 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
