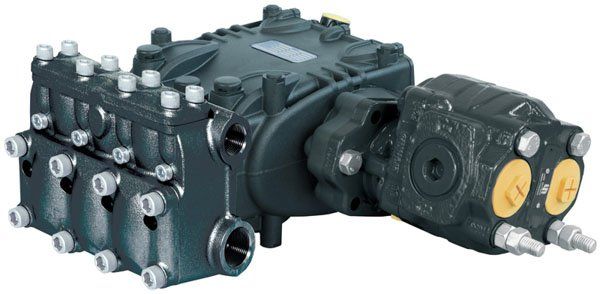

Pratissoli KT24 HYPACK Motorpump Unit KT24-HYP34

Pratissoli KT24 HYPACK motorpump unit: a high pressure plunger pump driven by a 34cc piston hydraulic motor, rated to 250 bar with 51 litres per minute at 1450 rpm and 62 litres per minute at 1750 rpm. At 1750 rpm the maximum pressure is 200 bar.

Specification

• Part number: KT24-HYP34
• 250 Bar max water pressure*
• 51 Lpm water flow @ 1450 Rpm
• 62 Lpm water flow @ 1750 Rpm
• 34cc piston motor
• Oil flow 49 Lpm @ 1450 Rpm
• Oil flow 60 Lpm @ 1750 Rpm
• Oil 350 Bar @ 250 Bar WP (280 Bar @ 200 Bar WP)
• HR treated cast iron manifold
• 40°C max water temperature
• Other motor options available
• *200 Bar max @ 1750 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
