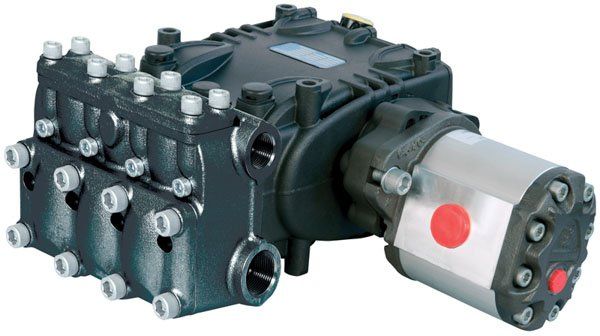

Pratissoli KT24 HYPACK Motorpump Unit KT24-HYG70

Pratissoli KT24 HYPACK motorpump unit with a 70cc hydraulic gear motor, delivering up to 200 bar water pressure with a water flow of 62 LPM at 1750 rpm. It has an HR treated cast iron pump manifold and needs an oil flow of 123 LPM at 1750 rpm with an oil pressure of 140 bar.

Specification

• Part number: KT24-HYG70
• Brand: Pratissoli
• Model: KT24 HYPACK motorpump unit
• Maximum water pressure: 200 bar
• Water flow: 62 LPM at 1750 rpm
• Hydraulic motor: 70cc gear motor
• Oil flow: 123 LPM at 1750 rpm
• Oil pressure: 140 bar
• Pump manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
