Pratissoli KT22 HYPACK Motorpump Unit KT22-HYP47

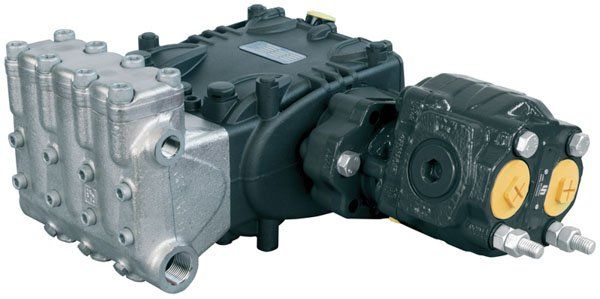

Pratissoli KT22 HYPACK motorpump unit: a high pressure plunger pump driven by a 47cc piston hydraulic motor, rated to 320 bar with 43 litres per minute at 1450 rpm and 52 litres per minute at 1750 rpm. At 1750 rpm the maximum pressure is 250 bar.

Specification

• Part number: KT22-HYP47
• 320 Bar max water pressure*
• 43 Lpm water flow @ 1450 Rpm
• 52 Lpm water flow @ 1750 Rpm
• 47cc piston motor
• Oil flow 68 Lpm @ 1450 Rpm
• Oil flow 82 Lpm @ 1750 Rpm
• Oil 280 Bar @ 320 Bar WP (220 Bar @ 250 Bar WP)
• Nickel plated st.steel pump manifold
• 40°C max water temperature
• Other motor options available
• *250 Bar max @ 1750 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
