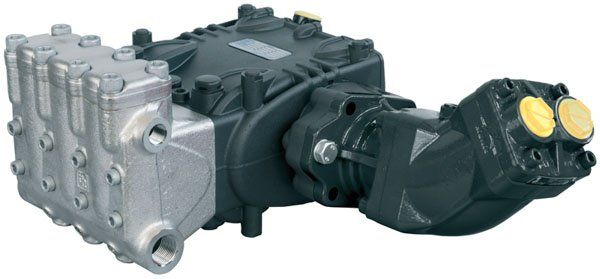

Pratissoli KT20 HYPACK Motorpump Unit KT20-HYP64

Pratissoli KT20 HYPACK motorpump unit: a high pressure plunger pump driven by a 64cc piston hydraulic motor, rated to 400 bar with 36 litres per minute at 1450 rpm and 43 litres per minute at 1750 rpm. At 1750 rpm the maximum pressure is 320 bar.

Specification

• Part number: KT20-HYP64
• 400 Bar max water pressure*
• 36 Lpm water flow @ 1450 Rpm
• 43 Lpm water flow @ 1750 Rpm
• 64cc piston motor
• Oil flow 93 Lpm @ 1450 Rpm
• Oil flow 112 Lpm @ 1750 Rpm
• Oil 210 Bar @ 400 Bar WP (170 Bar @ 320 Bar WP)
• Nickel plated st.steel pump manifold
• 40°C max water temperature
• Other motor options available
• *320 Bar max @ 1750 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
