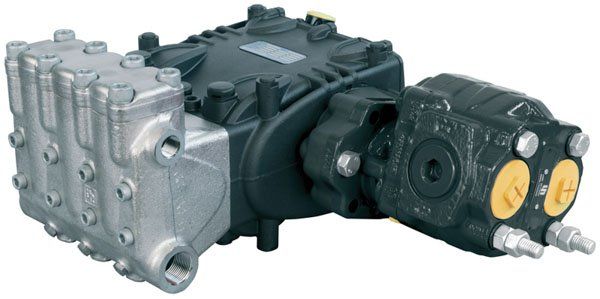

Pratissoli KT19 HYPACK Motorpump Unit KT19-HYP47

Pratissoli KT19 HYPACK motorpump unit: a high pressure plunger pump driven by a 47cc piston hydraulic motor, rated to 500 bar with 30 litres per minute at 1450 rpm and 36 litres per minute at 1750 rpm. At 1750 rpm the maximum pressure is 400 bar.

Specification

• Part number: KT19-HYP47
• 500 Bar max water pressure*
• 30 Lpm water flow @ 1450 Rpm
• 36 Lpm water flow @ 1750 Rpm
• 47cc piston motor
• Oil flow 68 Lpm @ 1450 Rpm
• Oil flow 82 Lpm @ 1750 Rpm
• Oil 320 Bar @ 500 Bar WP (260 Bar @ 400 Bar WP)
• Nickel plated st.steel pump manifold
• 40°C max water temperature
• Other motor options available
• *400 Bar max @ 1750 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.
