Overview

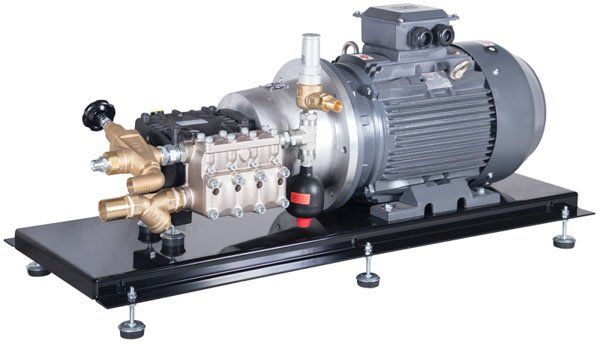

Pratissoli KT16 series skid-mounted motor pump unit with a Pratissoli KT16 pump, driven by a 415V 30kW IE3 motor at 1450 rpm. It delivers 500 bar at 22 litres per minute.

It is supplied fitted with a Pratissoli R1/600 pressure regulator, Pratissoli S723 pre-set safety valve and brass inlet filter. The pump has a nickel-plated cast iron manifold and is driven through a flexible spider coupling, on a heavy-duty skid. It handles fluid temperatures up to 40°C. The valve configuration differs from the product photo.

Specification

Part number	M500-1409
Brand	Pratissoli Motor Pump Units
Machine type	Skid-mounted motor pump unit
Maximum pressure	500 bar
Flow	22 litres per minute
Pump	Pratissoli KT16
Motor	30kW, 415V, 1450 rpm, IE3
Pressure regulator	Pratissoli R1/600
Safety valve	Pratissoli S723, pre-set
Inlet filter	Brass
Manifold	Nickel-plated cast iron
Coupling	Flexible spider coupling
Mounting	Heavy-duty skid
Maximum fluid temperature	40°C

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Skid-mounted Pratissoli KT16 motor pump unit on a 415V, 30kW, 1450 rpm IE3 motor, with R1/600 pressure regulator, S723 pre-set safety valve and brass inlet filter, delivering up to 500 bar at 22 litres per minute.

Specifications

Brand: Pratissoli Motor Pump Units
Pumps and Parts by Series: Pratissoli KT Series
Machine Format: Motor Pump Unit
Working Pressure: 500
Flow Rate: 22

RPM: 1450
Electrical Supply: 415 Volts
Power Source: Electric
Weight: 5 kg

Technical information

500 Bar max pressure

22 Lpm max flow

415V, 30kW, 1450 Rpm, IE3 motor

Pratissoli KT16 pump

Pratissoli R1/600 pressure regulator

Pratissoli S723 pre-set safety valve

Brass inlet filter

Nickel plated cast iron pump manifold

Flexible spider coupling

Mounted on heavy duty skid

40°C max fluid temperature

VALVE CONFIGURATION DIFFERS FROM PHOTO

Delivery & returns

Free delivery on online orders over £200 + VAT to a UK mainland address.

Orders processed by 2pm go out on tracked, insured next-working-day delivery.

Orders under £200 + VAT: delivery £11.99 + VAT.

Returns: ask us for a returns number first. Unused goods in their original packaging can come back at our discretion, less a restocking fee; faulty or wrong items have no fee.

Full delivery & returns details

Up to 7 Days Subject To Stock

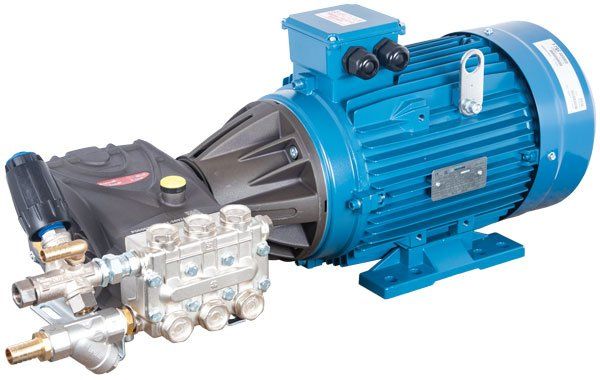

Interpump Motor Pump UnitsSKU M500-1321

Interpump VHT47 Series Motor Pump Unit with Unloader Valve and Filter, 415V 7.5kW, 160 Bar, 23 LPM

Out of stock

£1,893.13ex VAT£2,271.76 inc VAT

Up to 7 Days Subject To Stock

Interpump Motor Pump UnitsSKU M100-1313

Interpump VHT58 Series Motor Pump Unit, 400V 2.2kW, 150 Bar, 7 LPM, VHT5807 Pump

Out of stock

£1,162.95ex VAT£1,395.54 inc VAT

Up to 7 Days Subject To Stock

Interpump Motor Pump UnitsSKU M100-1314

Interpump VHT58 Series Motor Pump Unit, 400V 3kW, 170 Bar, 8 LPM, VHT5808 Pump

Out of stock

£1,201.05ex VAT£1,441.26 inc VAT

Up to 7 Days Subject To Stock

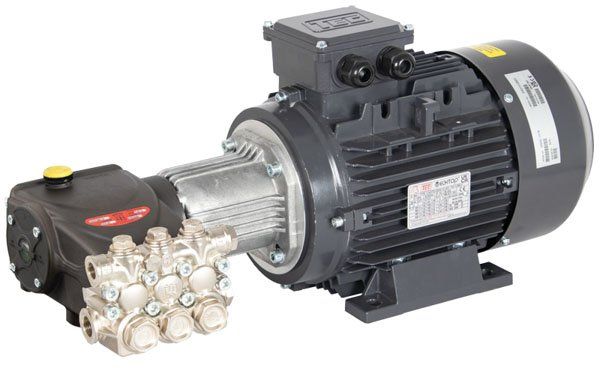

Interpump Motor Pump UnitsSKU M100-1315

Interpump VHT58 Series Motor Pump Unit, 400V 4kW, 170 Bar, 11 LPM, VHT5811 Pump

Out of stock

£1,296.23ex VAT£1,555.48 inc VAT

Up to 7 Days Subject To Stock

Interpump Motor Pump UnitsSKU M100-1316

Interpump VHT58 Series Motor Pump Unit, 400V 5.5kW, 170 Bar, 13 LPM, VHT5813 Pump

Out of stock

£1,306.04ex VAT£1,567.25 inc VAT

Up to 7 Days Subject To Stock

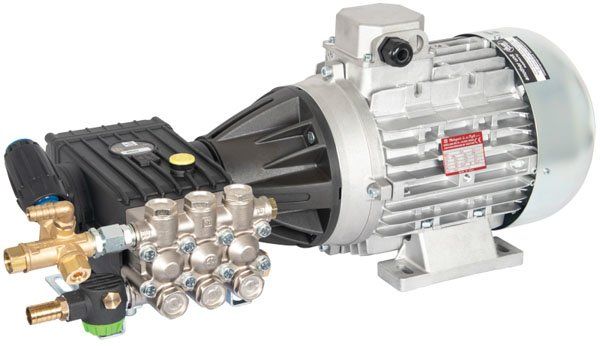

Interpump Motor Pump UnitsSKU M500-1045

Interpump 47 Series Motor Pump Unit with Valve, 415V, 125 Bar, 30 LPM, WS1630 Pump

Out of stock

£1,772.97ex VAT£2,127.56 inc VAT

Up to 7 Days Subject To Stock

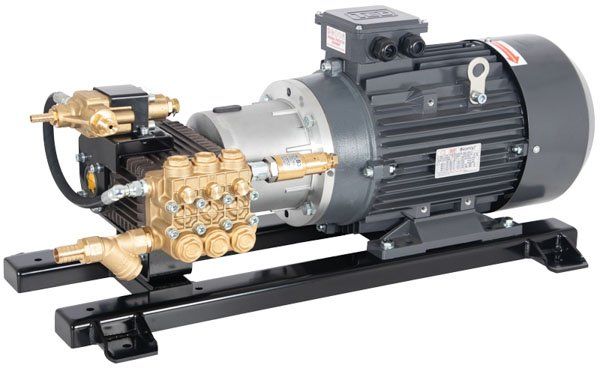

Interpump Motor Pump UnitsSKU M500-1053

Interpump Motor Pump Unit with Valve and Filter, 415V 20.5hp, 300 Bar, 21 LPM, W2031 Pump

Out of stock

£4,162.39ex VAT£4,994.87 inc VAT

Up to 7 Days Subject To Stock

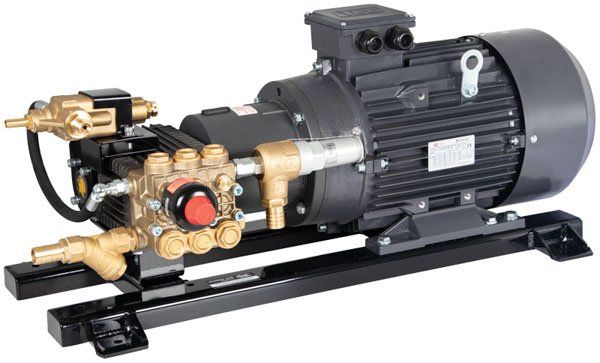

Interpump Motor Pump UnitsSKU M500-1056

Interpump Motor Pump Unit with Valve and Filter, 415V 20.5hp, 150 Bar, 50 LPM, W1550 Pump

Out of stock

£4,606.06ex VAT£5,527.27 inc VAT

Up to 7 Days Subject To Stock

Interpump Motor Pump UnitsSKU M500-1101

Interpump FE51 Series Motor Pump Unit with Valve and Filter, 110V 1hp, 100 Bar, 2 LPM

Out of stock

£763.29ex VAT£915.95 inc VAT

Up to 7 Days Subject To Stock

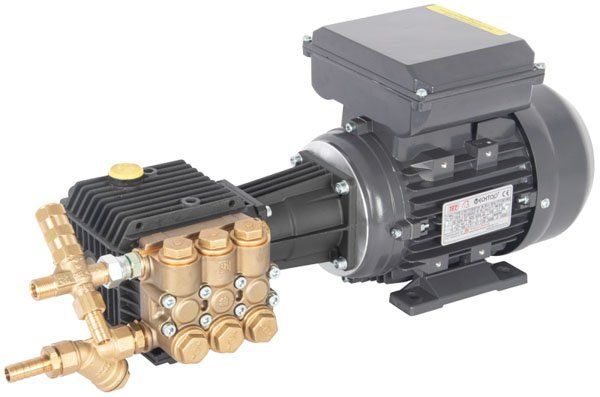

Interpump Motor Pump UnitsSKU M500-1103
