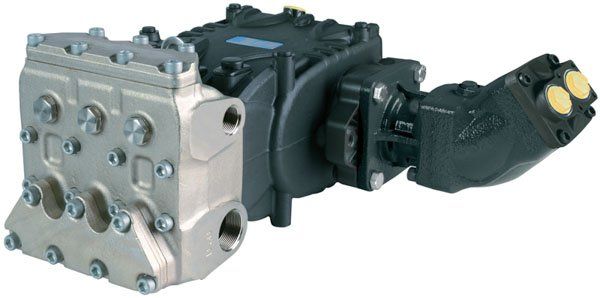

Pratissoli KF40 HYPACK Motorpump Unit KF40-HYP110

Pratissoli KF40 HYPACK motorpump unit with a 110cc hydraulic piston motor, delivering up to 110 bar water pressure with a water flow of 170 LPM at 900 rpm. It has a nickel plated stainless steel pump manifold and needs an oil flow of 99 LPM at 900 rpm with an oil pressure of 260 bar at 110 bar working pressure.

Specification

• Part number: KF40-HYP110
• Brand: Pratissoli
• Model: KF40 HYPACK motorpump unit
• Maximum water pressure: 110 bar
• Water flow: 170 LPM at 900 rpm
• Hydraulic motor: 110cc piston motor
• Oil flow: 99 LPM at 900 rpm
• Oil pressure: 260 bar at 110 bar working pressure
• Pump manifold: nickel plated stainless steel
• Maximum water temperature: 40°C
• Other motor options: available
