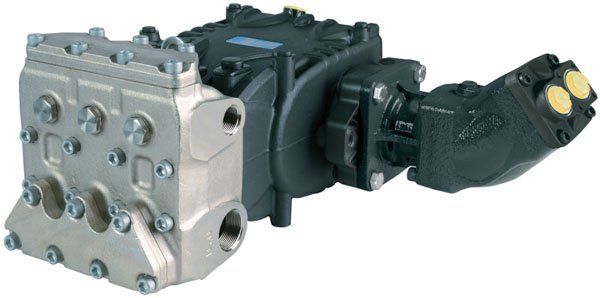

Pratissoli KF32 HYPACK Motorpump Unit KF32-HYP110

Pratissoli KF32 HYPACK motorpump unit with a 110cc hydraulic piston motor, delivering up to 180 bar water pressure with a water flow of 120 LPM at 1000 rpm. It has a nickel plated stainless steel pump manifold and needs an oil flow of 110 LPM at 1000 rpm with an oil pressure of 270 bar at 180 bar working pressure.

Specification

• Part number: KF32-HYP110
• Brand: Pratissoli
• Model: KF32 HYPACK motorpump unit
• Maximum water pressure: 180 bar
• Water flow: 120 LPM at 1000 rpm
• Hydraulic motor: 110cc piston motor
• Oil flow: 110 LPM at 1000 rpm
• Oil pressure: 270 bar at 180 bar working pressure
• Pump manifold: nickel plated stainless steel
• Maximum water temperature: 40°C
• Other motor options: available
