Product Overview:

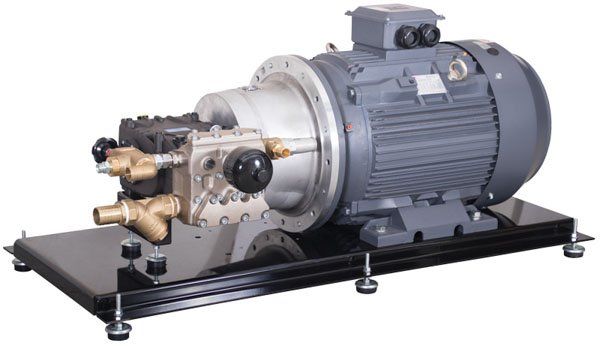

The Pratissoli HF25 Series Motor Pump Unit (MPU) – Part No: M500-1445 – is a high-capacity industrial pump system engineered for continuous-duty, high-demand cleaning and jetting operations. Delivering a powerful 73 litres per minute at 280 bar, this unit is driven by a 45kW, 415V IE3-rated motor running at 1000 RPM and features the heavy-duty Pratissoli HF25 pump with a nickel-plated stainless steel manifold.

Designed for aggressive use in large-scale applications, this MPU includes a Pratissoli R1/400 pressure regulator, S723 pre-set safety valve, and brass inlet filter, ensuring full system control and pump protection. Built on a heavy-duty skidand connected with a flexible spider coupling, the unit supports fluid temperatures up to 40°C. Please note: valve configuration may differ from product photo – contact us for technical drawings or confirmation.

Key Features:

✅ Max Pressure: 280 Bar
✅ Flow Rate: 73 Litres per minute
✅ Motor: 415V, 45kW, 1000 RPM – IE3 efficiency class
✅ Fitted with Pratissoli HF25 pump
✅ Nickel-plated stainless steel pump manifold – for corrosion resistance and strength
✅ Includes R1/400 pressure regulator and S723 safety valve
✅ Fitted with brass inlet filter for pump protection
✅ Flexible spider coupling ensures alignment and reduces vibration
✅ Mounted on heavy-duty skid for industrial environments
✅ Max Fluid Temperature: 40°C
✅ Note: Valve configuration may differ from image shown – request final specification

Why Choose This Product?

The Pratissoli HF25 Series MPU is engineered for extreme-duty cleaning systems, including hydrodemolition, tanker washing, concrete cutting, or process plant maintenance. With ultra-high flow and reliable pressure, it is one of the most capable MPUs available from Flowjet. Fully equipped and skid-mounted, it's ready for integration into your system.
