Pratissoli HF22 Series Electric Motor Pump Unit, 415V, 45kW, 350 Bar, 57 LPM, with Valves and Filter

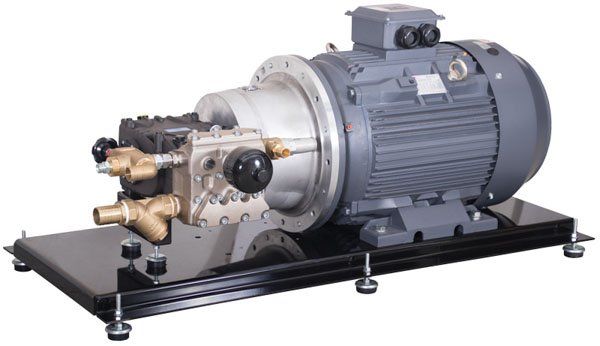

Pratissoli HF22 Series Electric Motor Pump Unit, 415V, 45kW, 350 Bar, 57 LPM, with Valves and Filter – image 1

Pratissoli HF22 Series Electric Motor Pump Unit, 415V, 45kW, 350 Bar, 57 LPM, with Valves and Filter

SKU: M500-1446

  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

This Pratissoli HF series electric motor pump unit pairs a Pratissoli HF22 pump with a 415V 45kW IE3 motor running at 1000 rpm. It delivers up to 350 bar at 57 litres per minute and is mounted on a heavy duty skid with a pressure regulator, pre-set safety valve and inlet filter. The valve configuration differs from the product photo.

Key features

  • Pratissoli HF22 pump with nickel plated stainless steel manifold
  • 415V, 45kW, 1000 rpm IE3 electric motor
  • Pratissoli R1/400 pressure regulator
  • Pratissoli S723 pre-set safety valve
  • Brass inlet filter
  • Flexible spider coupling
  • Mounted on a heavy duty skid

Specification

  • Maximum pressure: 350 bar
  • Maximum flow: 57 litres per minute
  • Motor: 415V, 45kW, 1000 rpm, IE3
  • Pump: Pratissoli HF22
  • Pump manifold: nickel plated stainless steel
  • Maximum fluid temperature: 40°C
