Pratissoli HF20 Series Electric Motor Pump Unit, 415V, 37kW, 400 Bar, 47 LPM, with Valves and Filter

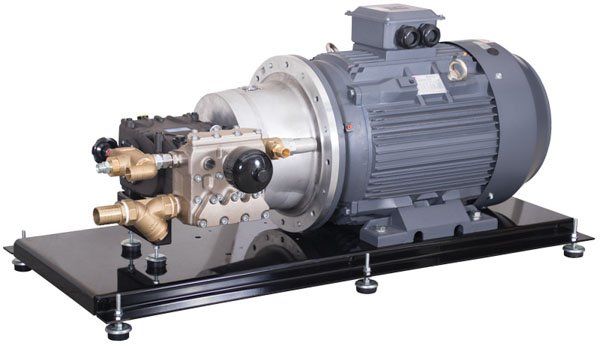

This Pratissoli HF series electric motor pump unit pairs a Pratissoli HF20 pump with a 415V 37kW IE3 motor running at 1000 rpm. It delivers up to 400 bar at 47 litres per minute and is mounted on a heavy duty skid with a pressure regulator, pre-set safety valve and inlet filter. The valve configuration differs from the product photo.

Key features

• Pratissoli HF20 pump with nickel plated stainless steel manifold
• 415V, 37kW, 1000 rpm IE3 electric motor
• Pratissoli R1/400 pressure regulator
• Pratissoli S723 pre-set safety valve
• Brass inlet filter
• Flexible spider coupling
• Mounted on a heavy duty skid

Specification

• Maximum pressure: 400 bar
• Maximum flow: 47 litres per minute
• Motor: 415V, 37kW, 1000 rpm, IE3
• Pump: Pratissoli HF20
• Pump manifold: nickel plated stainless steel
• Maximum fluid temperature: 40°C
