Pratissoli HF18 Series Electric Motor Pump Unit, 415V, 45kW, 600 Bar, 30 LPM, with Valves and Filter

Overview

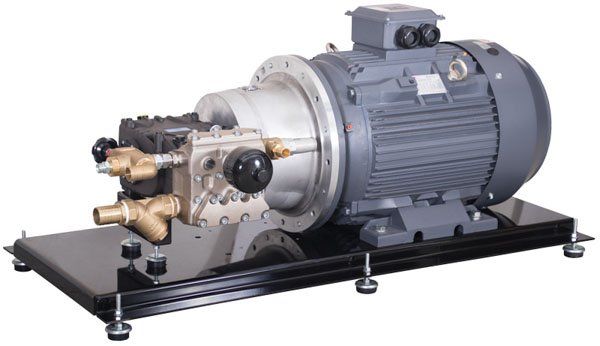

Pratissoli HF18 series skid-mounted motor pump unit with a Pratissoli HF18 pump, driven by a 415V 45kW IE3 motor at 1000 rpm. It delivers 600 bar at 30 litres per minute.

It is supplied fitted with a Pratissoli R1/600 pressure regulator, Pratissoli S723 pre-set safety valve and brass inlet filter. The pump has a nickel-plated stainless steel manifold and is driven through a flexible spider coupling, on a heavy-duty skid. It handles fluid temperatures up to 40°C. The motor is rated at 1000 rpm but must be run at 800 rpm maximum.

Specification

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.
