Pratissoli HF18 Series Electric Motor Pump Unit, 415V, 37kW, 500 Bar, 38 LPM, with Valves and Filter

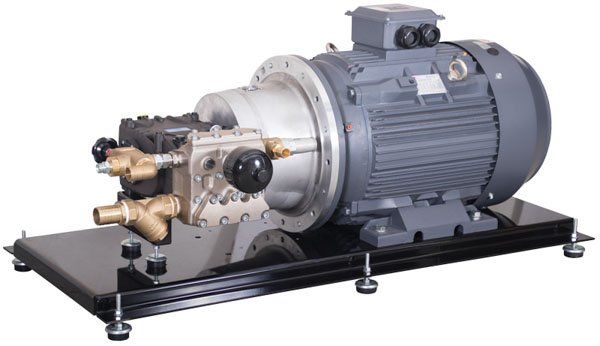

Pratissoli HF18 Series Electric Motor Pump Unit, 415V, 37kW, 500 Bar, 38 LPM, with Valves and Filter – image 1
Pratissoli Motor Pump UnitsUp to 7 Days Subject To Stock

Pratissoli HF18 Series Electric Motor Pump Unit, 415V, 37kW, 500 Bar, 38 LPM, with Valves and Filter

SKU M500-1448
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

This Pratissoli HF series electric motor pump unit pairs a Pratissoli HF18 pump with a 415V 37kW IE3 motor running at 1000 rpm. It delivers up to 500 bar at 38 litres per minute and is mounted on a heavy duty skid with a pressure regulator, pre-set safety valve and inlet filter. The valve configuration differs from the product photo.

Key features

  • Pratissoli HF18 pump with nickel plated stainless steel manifold
  • 415V, 37kW, 1000 rpm IE3 electric motor
  • Pratissoli R1/600 pressure regulator
  • Pratissoli S723 pre-set safety valve
  • Brass inlet filter
  • Flexible spider coupling
  • Mounted on a heavy duty skid

Specification

  • Maximum pressure: 500 bar
  • Maximum flow: 38 litres per minute
  • Motor: 415V, 37kW, 1000 rpm, IE3
  • Pump: Pratissoli HF18
  • Pump manifold: nickel plated stainless steel
  • Maximum fluid temperature: 40°C

Skid-mounted Pratissoli HF18 motor pump unit on a 415V, 37kW, 1000 rpm IE3 motor, with R1/600 pressure regulator, S723 pre-set safety valve and brass inlet filter, delivering up to 500 bar at 38 litres per minute.

Specifications

Brand
Pratissoli Motor Pump Units
Pumps and Parts by Series
Pratissoli HF Series
Machine Format
Motor Pump Unit
Working Pressure
500
Flow Rate
38
RPM
1000
Electrical Supply
415 Volts
Power Source
Electric
Weight
5 kg

Technical information

500 Bar max pressure

38 Lpm max flow

415V, 37kW, 1000 Rpm, IE3 motor

Pratissoli HF18 pump

Pratissoli R1/600 pressure regulator

Pratissoli S723 pre-set safety valve

Brass inlet filter

Nickel plated st.steel pump manifold

Flexible spider coupling

Mounted on heavy duty skid

40°C max fluid temperature

VALVE CONFIGURATION DIFFERS FROM PHOTO
