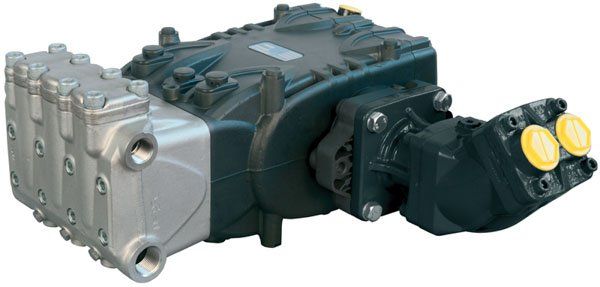

Pratissoli HF18 HYPACK Motorpump Unit HF18-HYP84

Pratissoli HF18 HYPACK motorpump unit: a high pressure plunger pump driven by an 84cc piston hydraulic motor, rated to 600 bar with 30 litres per minute at 800 rpm and 38 litres per minute at 1000 rpm. At 1000 rpm the maximum pressure is 500 bar.

Specification

• Part number: HF18-HYP84
• 600 Bar max water pressure*
• 30 Lpm water flow @ 800 Rpm
• 38 Lpm water flow @ 1000 Rpm
• 84cc piston motor
• Oil flow 67 Lpm @ 800 Rpm
• Oil flow 84 Lpm @ 1000 Rpm
• Oil 370 Bar @ 600 Bar WP (310 Bar @ 500 Bar WP)
• Nickel plated st.steel pump manifold
• 40°C max water temperature
• Other motor options available
• *500 Bar max @ 1000 Rpm

Before installation: Check the size, thread and rating against your existing part or system before ordering.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.
