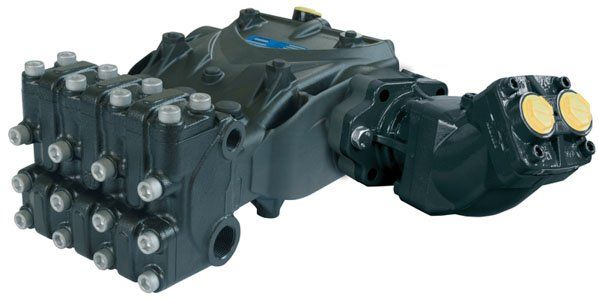

Pratissoli EV26 HYPACK Motorpump Unit E4B1381-HYP64

Pratissoli EV26 HYPACK motorpump unit with a 64cc hydraulic piston motor, delivering up to 130 bar water pressure with a water flow of 81 LPM at 1450 rpm and 98 LPM at 1750 rpm. It has an HR treated cast iron manifold and needs an oil flow of 93 LPM at 1450 rpm and 112 LPM at 1750 rpm at 160 bar.

Specification

• Part number: E4B1381-HYP64
• Brand: Pratissoli
• Model: EV26 HYPACK motorpump unit
• Maximum water pressure: 130 bar
• Water flow: 81 LPM at 1450 rpm
• Water flow: 98 LPM at 1750 rpm
• Hydraulic motor: 64cc piston motor
• Oil flow: 93 LPM at 1450 rpm
• Oil flow: 112 LPM at 1750 rpm
• Oil pressure: 160 bar
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
