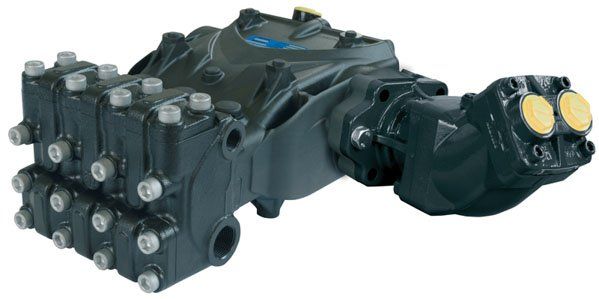

Pratissoli EV25 HYPACK Motorpump Unit E4B1575-HYP47

Pratissoli EV25 HYPACK motorpump unit with a 47cc hydraulic piston motor, delivering up to 150 bar water pressure with a water flow of 75 LPM at 1450 rpm and 90 LPM at 1750 rpm. It has an HR treated cast iron manifold and needs an oil flow of 68 LPM at 1450 rpm and 82 LPM at 1750 rpm at 230 bar.

Specification

• Part number: E4B1575-HYP47
• Brand: Pratissoli
• Model: EV25 HYPACK motorpump unit
• Maximum water pressure: 150 bar
• Water flow: 75 LPM at 1450 rpm
• Water flow: 90 LPM at 1750 rpm
• Hydraulic motor: 47cc piston motor
• Oil flow: 68 LPM at 1450 rpm
• Oil flow: 82 LPM at 1750 rpm
• Oil pressure: 230 bar
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
