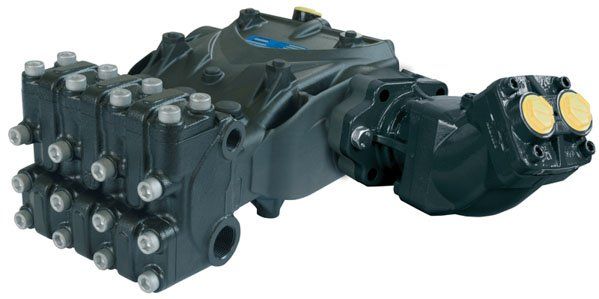

Pratissoli EV25 HYPACK Motorpump Unit E4B1575-HYP34

Pratissoli EV25 HYPACK motorpump unit with a 34cc hydraulic piston motor, delivering up to 150 bar water pressure with a water flow of 75 LPM at 1450 rpm and 90 LPM at 1750 rpm. It has an HR treated cast iron manifold and needs an oil flow of 49 LPM at 1450 rpm and 60 LPM at 1750 rpm at 310 bar.

Specification

• Part number: E4B1575-HYP34
• Brand: Pratissoli
• Model: EV25 HYPACK motorpump unit
• Maximum water pressure: 150 bar
• Water flow: 75 LPM at 1450 rpm
• Water flow: 90 LPM at 1750 rpm
• Hydraulic motor: 34cc piston motor
• Oil flow: 49 LPM at 1450 rpm
• Oil flow: 60 LPM at 1750 rpm
• Oil pressure: 310 bar
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
