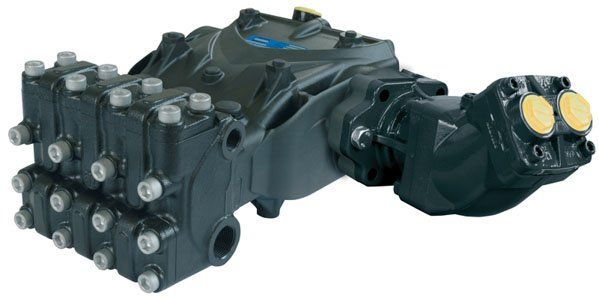

Pratissoli EV20 HYPACK Motorpump Unit E4B2548-HYP64

Pratissoli EV20 HYPACK motorpump unit with a 64cc hydraulic piston motor, delivering up to 250 bar water pressure with a water flow of 48 LPM at 1450 rpm and 58 LPM at 1750 rpm. It has an HR treated cast iron manifold and needs an oil flow of 93 LPM at 1450 rpm and 112 LPM at 1750 rpm at 180 bar.

Specification

• Part number: E4B2548-HYP64
• Brand: Pratissoli
• Model: EV20 HYPACK motorpump unit
• Maximum water pressure: 250 bar
• Water flow: 48 LPM at 1450 rpm
• Water flow: 58 LPM at 1750 rpm
• Hydraulic motor: 64cc piston motor
• Oil flow: 93 LPM at 1450 rpm
• Oil flow: 112 LPM at 1750 rpm
• Oil pressure: 180 bar
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
