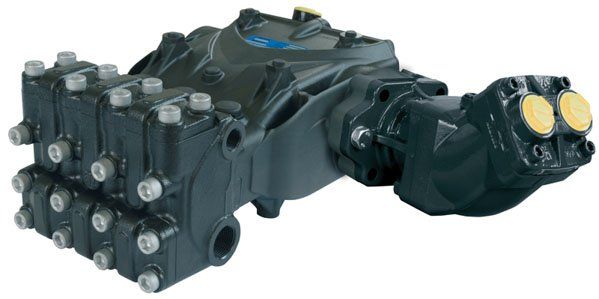

Pratissoli EV20 HYPACK Motorpump Unit E4B2548-HYP47

Pratissoli EV20 HYPACK motorpump unit with a 47cc hydraulic piston motor, delivering up to 250 bar water pressure with a water flow of 48 LPM at 1450 rpm and 58 LPM at 1750 rpm. It has an HR treated cast iron manifold and needs an oil flow of 68 LPM at 1450 rpm and 82 LPM at 1750 rpm at 240 bar.

Specification

• Part number: E4B2548-HYP47
• Brand: Pratissoli
• Model: EV20 HYPACK motorpump unit
• Maximum water pressure: 250 bar
• Water flow: 48 LPM at 1450 rpm
• Water flow: 58 LPM at 1750 rpm
• Hydraulic motor: 47cc piston motor
• Oil flow: 68 LPM at 1450 rpm
• Oil flow: 82 LPM at 1750 rpm
• Oil pressure: 240 bar
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
