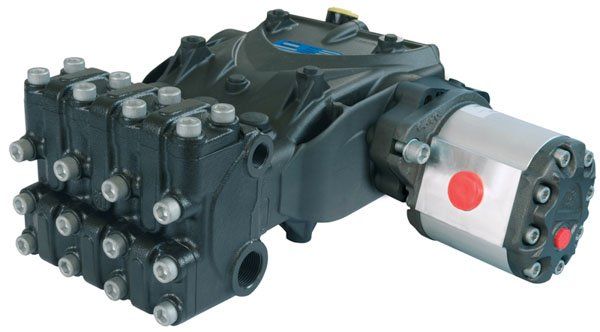

Pratissoli EV20 HYPACK Motorpump Unit E4B2548-HYG70

Pratissoli EV20 HYPACK motorpump unit with a 70cc hydraulic gear motor, delivering up to 250 bar water pressure with a water flow of 48 LPM at 1450 rpm and 58 LPM at 1750 rpm. It has an HR treated cast iron manifold and needs an oil flow of 102 LPM at 1450 rpm and 123 LPM at 1750 rpm at 160 bar.

Specification

• Part number: E4B2548-HYG70
• Brand: Pratissoli
• Model: EV20 HYPACK motorpump unit
• Maximum water pressure: 250 bar
• Water flow: 48 LPM at 1450 rpm
• Water flow: 58 LPM at 1750 rpm
• Hydraulic motor: 70cc gear motor
• Oil flow: 102 LPM at 1450 rpm
• Oil flow: 123 LPM at 1750 rpm
• Oil pressure: 160 bar
• Manifold: HR treated cast iron
• Maximum water temperature: 40°C
• Other motor options: available
