Name: R+M Suttner Panel Mount ST162 Injector 3/8" F x 1/2" F 1.4, 350 Bar
Brand: R&M Suttner
SKU: 200162502
Price: 571.2 GBP
Availability: InStock

Overview

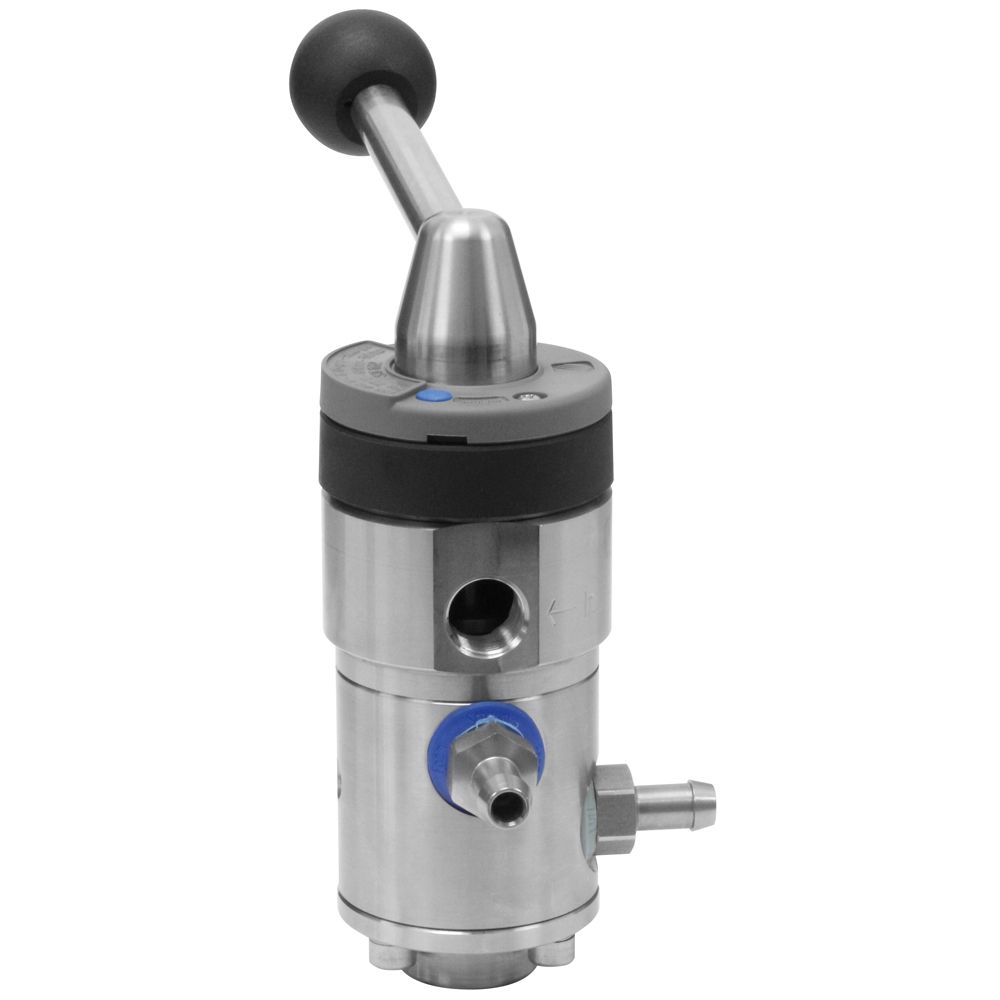

Suttner ST162 panel mount chemical injector in stainless steel, with a 3/8" BSP female inlet, a 1/2" BSP female outlet and a 1.4mm nozzle.

Rated to 350 bar and 100°C. A lever switches between rinse and chemical. Foam needs a foam lance without air intake, with the air supplied through a 9mm hose barb on the injector. Ten nozzle inserts are included for dosing. It weighs 2.18kg.

Specification

Part number	200162502
Brand	R+M Suttner
Material	Stainless steel
Orifice diameter	1.4mm
Maximum pressure	350 bar
Maximum temperature	100°C
Inlet	3/8" BSP female
Outlet	1/2" BSP female
Bore	9mm
Weight	2.18kg
Country of origin	Germany

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

Specifications

Brand: R&M Suttner
Max Pressure Rating: 350 bar
Inlet: ⅜" BSP Female
Outlet: ½" BSP Female
Max Temperature Rating: 100°C

Foam & Chemical Method: Compressed Air Foam Injector
Injector / Nozzle Size: Injector Size 1.4mm
Material: Stainless Steel
Weight: 2.18 kg

Technical information

Maximum pressure: 350 bar

Maximum temperature: 100°C

Inlet: 3/8" BSP female

Outlet: 1/2" BSP female

Bore: 9mm

Material: Stainless steel

Orifice diameter: 1.4mm

Weight: 2.18kg

Country of origin: Germany

Compare similar products

Detail	This product	R+M Suttner Panel Mount ST162 Injector 3/8" F x 1/2" F 1.2, 350 Bar	R+M Suttner Panel Mount ST162 Injector 3/8" F x 1/2" F 1.3, 350 Bar	R+M Suttner Panel Mount ST162 Injector 3/8" F x 1/2" F 1.5, 350 Bar
Price	£476.00 ex VAT £571.20 inc VAT	£476.00 ex VAT £571.20 inc VAT	£476.00 ex VAT £571.20 inc VAT	£476.00 ex VAT £571.20 inc VAT
Max pressure	350 bar	350 bar	350 bar	350 bar
Max temperature	100°C	100°C	100°C	100°C
Inlet	⅜" BSP Female	⅜" BSP Female	⅜" BSP Female	⅜" BSP Female
Outlet	½" BSP Female	½" BSP Female	½" BSP Female	½" BSP Female
Availability	In stock	In stock	In stock	In stock
