Overview

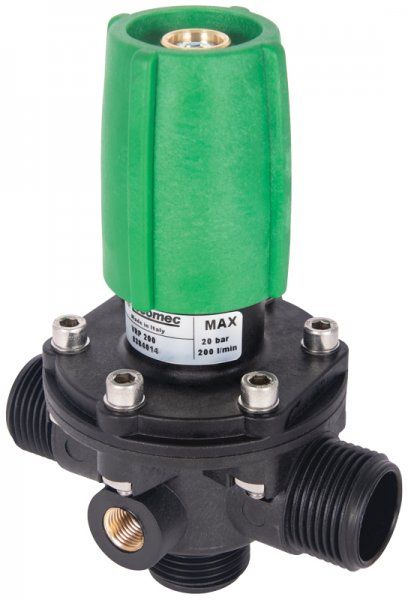

NRG68-200 pressure regulating valve for in line mounting, rated to 20 bar, 200 LPM and 60°C, with a PA66-GF50 reinforced nylon body, AISI431 stainless steel internals and NBR seals.

The inlet, outlet and bypass are all 1" BSP male, and the 1/4" BSP female gauge port must be drilled out before use.

Specification

Maximum pressure: 20 bar
Maximum flow: 200 LPM
Maximum temperature: 60°C
Mounting: in line
Body: PA66-GF50 reinforced nylon
Internals: AISI431 stainless steel
Seals: NBR
Inlet: 1" BSP male
Outlet: 1" BSP male
Bypass: 1" BSP male
Gauge port: 1/4" BSP female (must be drilled out)

NRG68-200 in-line pressure regulating valve rated to 20 bar, 200 litres per minute and 60°C, with reinforced nylon body and 1" BSP male ports.

Compare similar products

Detail	This product	SVT28 Pressure Regulator 25-250 Bar	3300 Pressure Regulating Valve	3300 Pressure Regulating Valve
Price	£97.82 ex VAT £117.38 inc VAT	£32.48 ex VAT £38.98 inc VAT	£134.42 ex VAT £161.30 inc VAT	£115.10 ex VAT £138.12 inc VAT
Max pressure	20 bar	250 bar	27.6 bar	13.8 bar
Max flow	–	25 LPM	–	–
Max temperature	–	90°C	–	–
Inlet	–	⅜" BSP Female	–	–
Outlet	–	⅜" BSP Female	–	–
Availability	In stock	In stock	In stock	In stock
