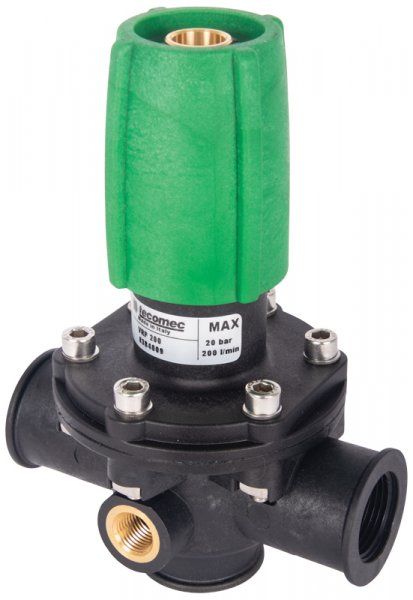

NRG68-150 Pressure Regulating Valve

NRG68-150 pressure regulating valve for in line mounting, rated to 20 bar, 150 LPM and 60°C, with a PA66-GF50 reinforced nylon body, AISI431 stainless steel internals and NBR seals.

The inlet, outlet and bypass are all 3/4" BSP female, and the 1/4" BSP female gauge port must be drilled out before use.

Specification

• Maximum pressure: 20 bar
• Maximum flow: 150 LPM
• Maximum temperature: 60°C
• Mounting: in line
• Body: PA66-GF50 reinforced nylon
• Internals: AISI431 stainless steel
• Seals: NBR
• Inlet: 3/4" BSP female
• Outlet: 3/4" BSP female
• Bypass: 3/4" BSP female
• Gauge port: 1/4" BSP female (must be drilled out)
