Nilfisk MH 4M-100/680 PAX Electric Hot Pressure Washer, 100 Bar, 11 LPM
Nilfisk MH4 Hot Pressure Washer With Hose Reel
107146911 Nilfisk MH 4 With Hose Reel
Nilfisk MH 4M-100/680 PAX Electric Hot Pressure Washer, 100 Bar, 11 LPM – image 3
Nilfisk MH 4M-100/680 PAX Electric Hot Pressure Washer, 100 Bar, 11 LPM – image 4
Nilfisk MH 4M-100/680 PAX Electric Hot Pressure Washer, 100 Bar, 11 LPM – image 5

Nilfisk MH 4M-100/680 PAX Electric Hot Pressure Washer, 100 Bar, 11 LPM

SKU: 107146911

  • Get finance on orders over £1000 Learn More
  • Free UK mainland delivery on orders over £200 excluding VAT
  • Bulk discounts available
  • Stock moves quickly. For large or urgent orders, call 015395 66193 to confirm availability.
  • Need assistance? Call 015395 66193

Overview

Discontinued: this model has been discontinued by Nilfisk. Its replacements are shown in the related products below. The closest match is the Nilfisk MH45M-100/680 PAX (107147124). Contact us on 015395 66193 if you need help choosing.

Nilfisk MH 4M-100/680 PAX mobile hot water pressure washer for 230V single-phase supplies. It delivers 100 bar at up to 680 litres per hour (11.3 litres per minute), with a diesel-fired boiler giving hot water up to 90°C and steam up to 150°C.

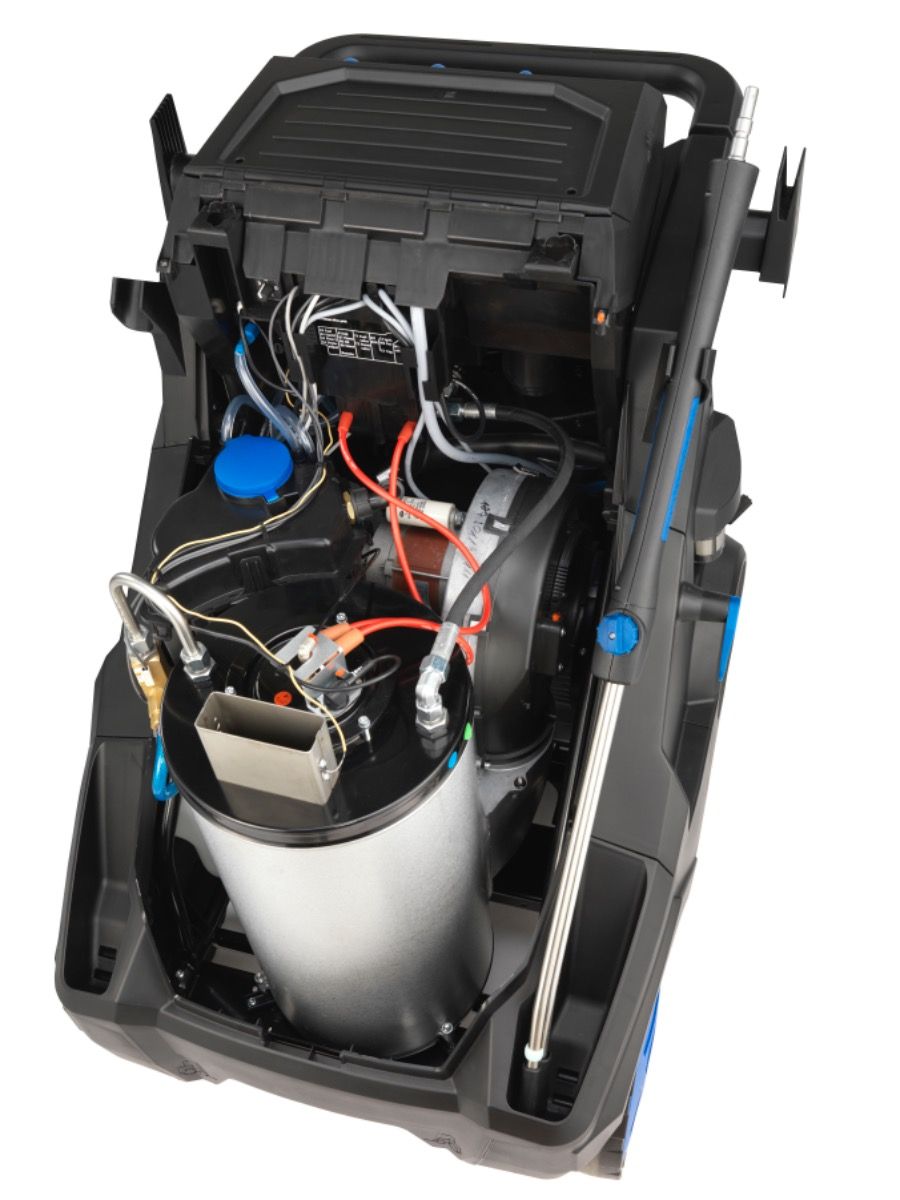

The MH 4M series takes mid-range hot water high pressure washers to a new level, meeting the latest productivity demands in the market. The MH 4M is equipped with our industrial NA5 pump with 3 ceramic pistons and a high efficiency 4 pole motor. And the flow activated control system improves user comfort and handling as well as overall machine reliability.

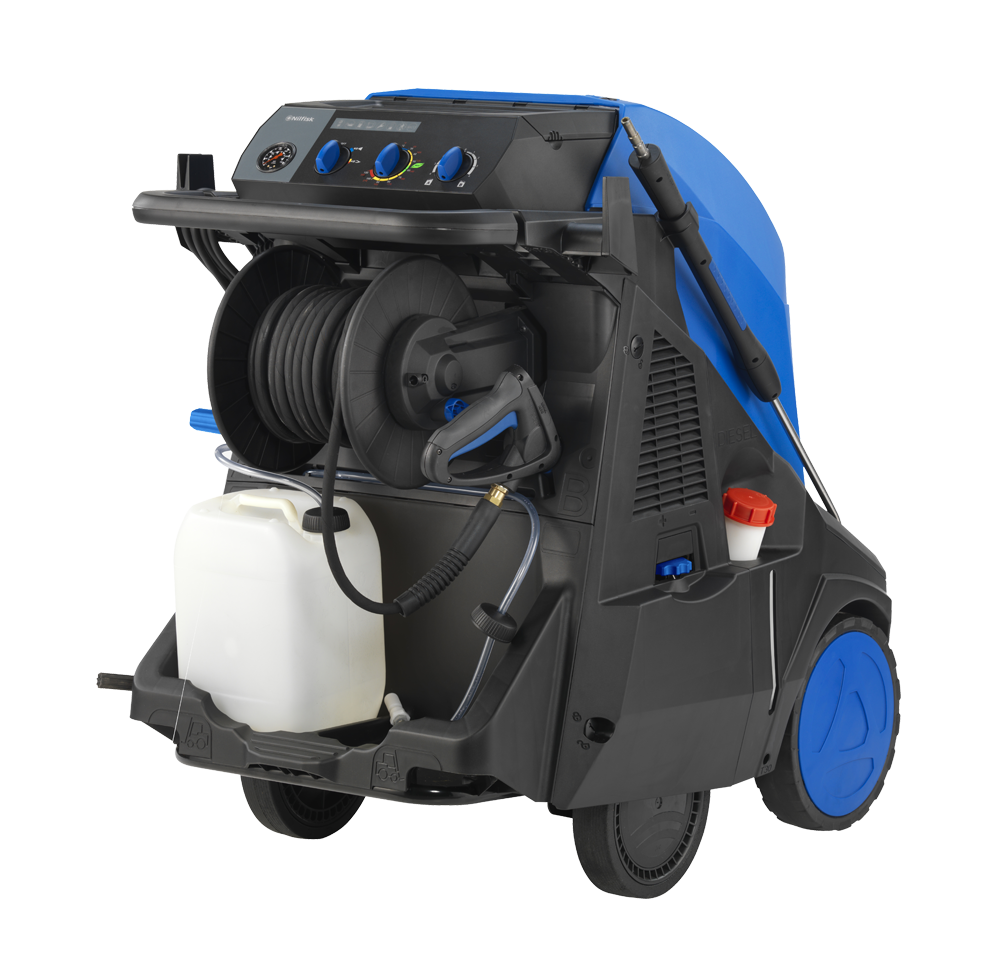

Features include hose reel, turnable cable hook, SilentPower 1450 rpm motor, QuickService concept, Ergo accessory system, WDK dual detergent injector, pump oil warning system, service indicator, water break tank, water flow regulation, single-phase, brass cylinder head, high pressure detergent system, parking brake, transportable by forklift truck, flame sensor, spray gun holder, motor on-off lamp, 10 litre detergent tank, 2 lance holder, 4 large wheels, storage box, AntiStone, 15 litre fuel tank, fuel sight from outside, ECO mode feature, 50µ water inlet filter, full ceramic pistons and delayed automatic start stop.

Specification

Part number107146911
BrandNilfisk
ModelMH 4M-100/680 PAX UK
Machine typeMobile hot water pressure washer
Maximum pressure100 bar
Water flow680 / 630 litres per hour
Electrical supply230V, single phase, 50Hz, 13A
Power consumption2.9kW
Water temperature90°C hot water, 150°C steam
Boiler fuel consumption2.8kg/h at ΔT 45°C
Fuel tank15 litres
Detergent tanks10 litres
Cleaning impact2.5kg force
Pump speed1450 rpm
Ceramic pistons3
Nozzle size.0475
Power cable5m
Maximum inlet temperature40°C
Dimensions (L x W x H)1010 x 700 x 1016mm
Weight141kg
Recommended useUp to 5 hours a day

What's in the box

  • Nilfisk Hose reel Nilfisk (106403184)
  • Nilfisk Filter complete MH 5000mm² 50µ (107144272)
  • Nilfisk Hose nozzle 20R3/4 (61369)
  • Nilfisk Universal Plus lance 940 bend without nozzle (106403036)
  • Nilfisk Ergo 2000 standard with hose swivel (106403122)
  • Nilfisk Tornado nozzle 0475 (301150005)

For technical advice or help choosing a machine, call 015395 66193 or email sales@flowjet.co.uk.
