Marco UPXC/AC Series PumpsMarco UPXC/AC Series Pumps

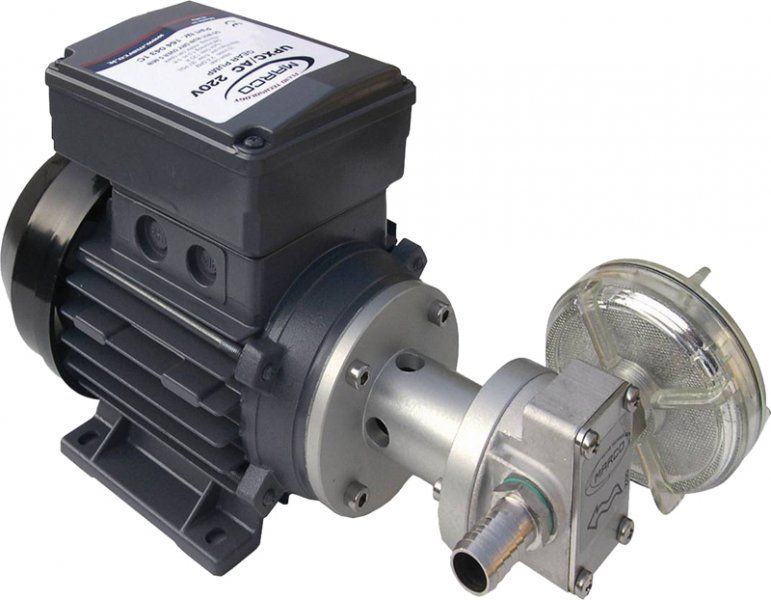

Marco UPXC/AC Gear Pump
Marco UPXC/AC Gear Pump – image 1
Marco

Marco UPXC/AC Gear Pump

SKU 164.043.1C
Max pressure
6 bar
Max flow
10 LPM
Inlet
⅜" BSP Female
Outlet
⅜" BSP Female · Thread chart
£431.82 ex VAT
£518.18 inc. VAT
In stockOrder by 2pm for next-day delivery.
Need help choosing? Call 015395 66193 (Mon–Fri 9am–5pm) or email sales@flowjet.co.uk.

Overview

Marco UPXC/AC self-priming 230V AC gear pump for transferring water, selected chemical products and some acid and alkaline fluids. It is rated to 10 litres per minute and 6 bar, with a suction lift of up to 1.5m.

The body is AISI 316 stainless steel with helicoidal PEEK gears, which tolerate brief dry running, and Viton seals and O-rings. It has 3/8" BSP female ports, comes with two 13mm AISI 316 stainless steel hose barbs and has a built-in inline filter, so it is not suitable for flooded feed. A 1.2 amp fuse is required.

The maximum fluid temperature is 40°C, or up to 85°C with water and selected fluids. It is not suitable for petrol or flammable liquids with a flash point below 38°C, solvents, or fluids above 20 cSt viscosity.

Specification

Part number164.043.1C
BrandMarco
ModelUPXC/AC
Voltage230V AC
Fuse1.2 amp
Maximum flow10 litres per minute
Maximum pressure6 bar
Maximum suction lift1.5m
Maximum fluid temperature40°C (85°C with water and selected fluids)
Ports3/8" BSP female
BodyAISI 316 stainless steel
GearsHelicoidal PEEK
SealsViton
Supplied with2 x 13mm AISI 316 stainless steel hose barbs
FilterBuilt-in inline filter, not for flooded feed

Sizing help

To match a motor to your pump, see our electric motor sizing guide.

For technical advice or help choosing a part, call 015395 66193 or email sales@flowjet.co.uk.

Marco UPXC/AC 230V stainless steel gear pump, 10 litres per minute, 6 bar, for some acid and alkaline fluids.

Specifications

Brand
Marco
Max Pressure Rating
6 bar
Max Flow Rating
10 LPM
Inlet
⅜" BSP Female
Outlet
⅜" BSP Female
Temperature
40°C
Electrical Supply
230 Volts
Diaphragm Material
Viton
Material
Stainless Steel
Weight
4.1 kg

Technical information

6 Bar max pressure

10 Lpm max flow

230 Volt AC, 1.2 Amp fuse

AISI 316 stainless steel body

Helicoidal PEEK gears

Viton seals & O rings

40°C max fluid temperature

1.5m max suction

3/8"BSP female ports

With 2x 13mm AISI 316 hose barbs

Inline filter (NOT for flooded feed)

Suitable for some acid & alkaline fluids

Documents

Data Sheet pdf_link_1

Marco Upxcac User Manual.pdf
