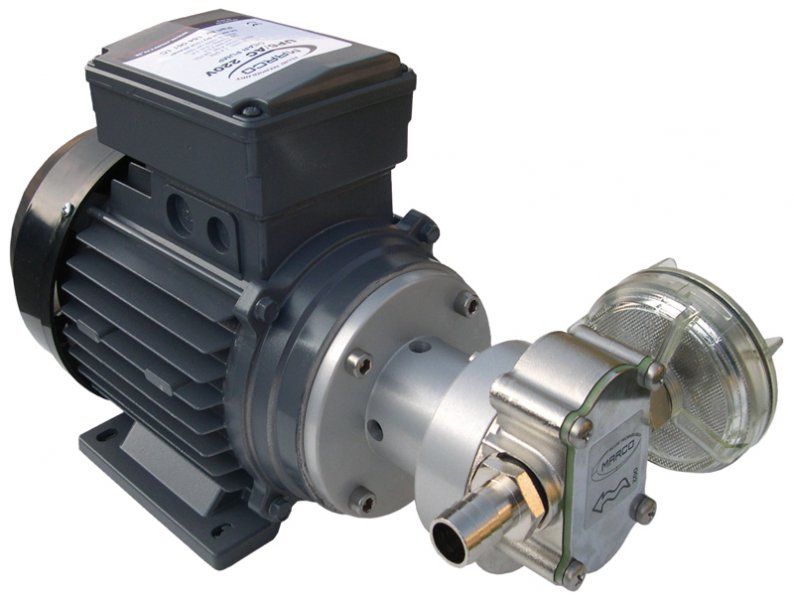

Marco UP6/AC Gear Pump

Marco UP6/AC 230V AC gear pump with a nickel plated brass body and helicoidal PEEK gears, rated to 28 LPM and 4 bar, with 1/2" BSP female ports and two 16mm hose barbs.

Specification

• Part number: 164.061.1C
• Brand: Marco
• Maximum pressure: 4 bar
• Maximum flow: 28 LPM
• Supply: 230V AC, 2.5A fuse
• Body: nickel plated brass
• Gears: helicoidal PEEK
• Seals: Viton, with BUNA O rings
• Maximum fluid temperature: 60°C
• Maximum suction: 1.5m
• Ports: 1/2" BSP female, with 2 x 16mm hose barbs
• Inline filter (not for flooded feed)
• Plug: 2-pin EU Schuko; to use with a UK 3-pin socket it must be re-wired by a suitably qualified technician or fitted with a suitable adaptor
