Overview

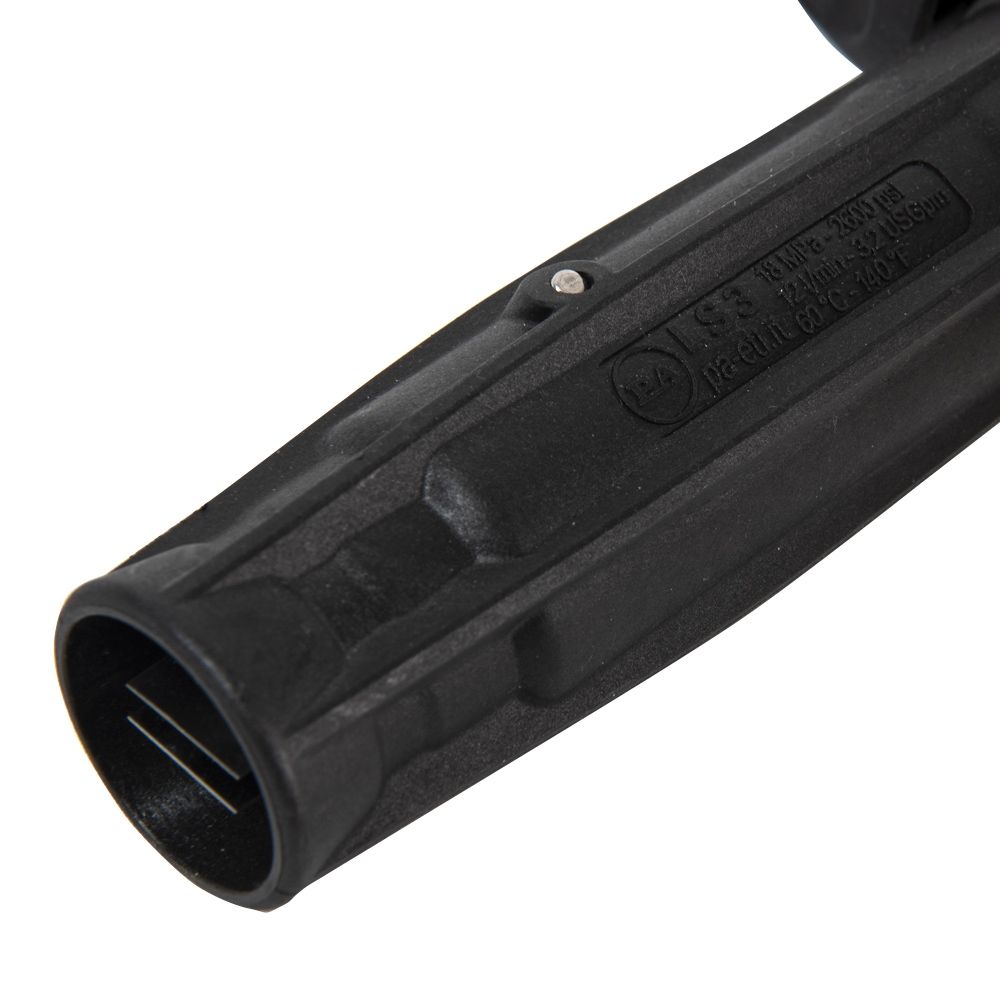

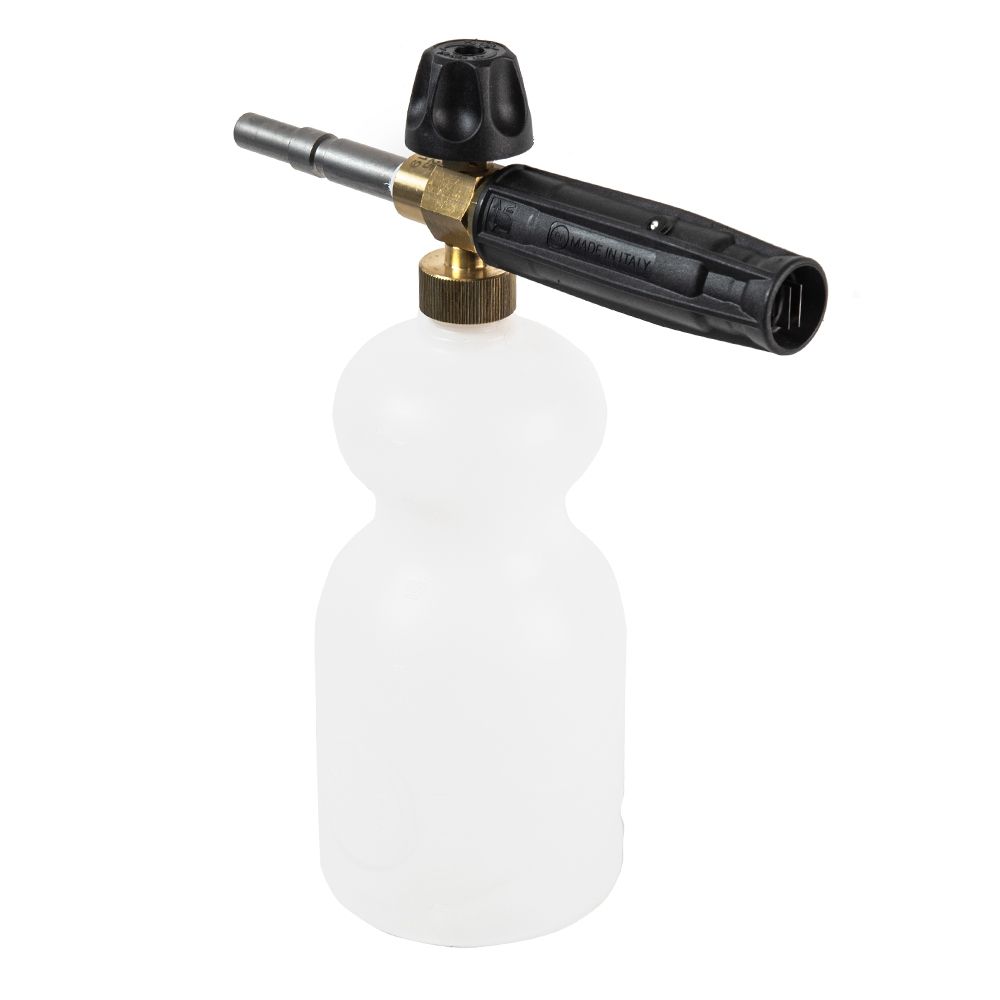

LS3 snow foam lance made in Italy by PA, with a 1 litre chemical-resistant bottle and a solid brass injector head. It is for hobby and semi-professional pressure washers, mixing pre-wash product with the water to make a thick foam.

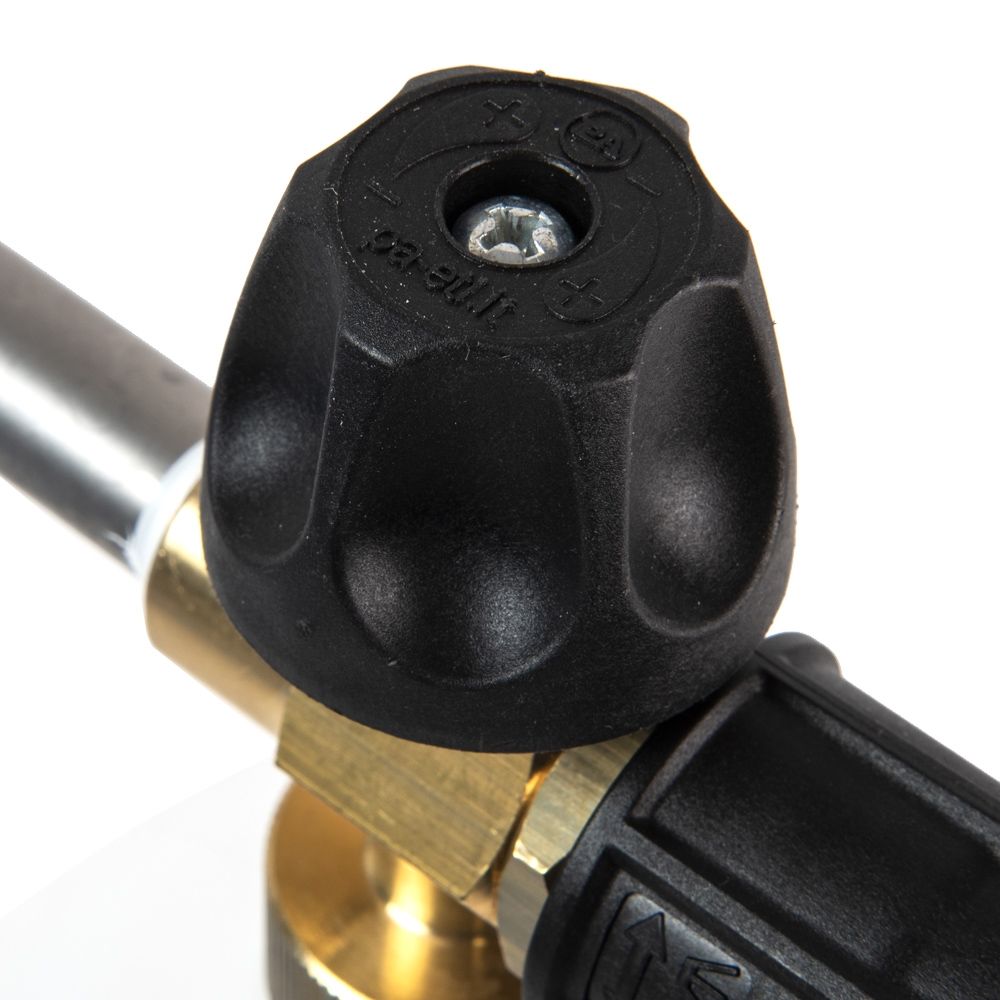

A knob sets the amount of chemical and an adjustable collar sets the spray fan. It has a KEW spigot male inlet and a 1.25mm nozzle and is rated to 180 bar, 12 litres per minute and 60°C. Run clean water through the lance after each use to stop dried soap blocking the internal foam pad. It weighs 0.25kg.

Specification

Part number	540506
Brand	PA
Type	Snow foam lance with bottle
Maximum pressure	180 bar
Maximum flow	12 litres per minute
Maximum temperature	60°C
Inlet	KEW Spigot male
Series	LS3
Nozzle	1.25mm
Bottle	1 litre
Injector head	Solid brass
Weight	0.25kg
Country of origin	Italy

Before installation: Check your pump's flow and working pressure against our foam nozzle size chart, check the connection threads using our BSP thread size chart, and make sure the pressure and temperature ratings suit your system.

For product advice, contact Flowjet Cleaning Equipment LTD on 015395 66193 or email sales@flowjet.co.uk.

Flowjet Cleaning Equipment LTD
Unit 4, Gatebeck Farm
Gatebeck, Kendal
LA8 0HW
United Kingdom

For help checking compatibility with your pressure washer or cleaning system, contact Flowjet Cleaning Equipment.

Specifications

Brand: PA
Max Pressure Rating: 180 bar
Max Flow Rating: 12 LPM
Inlet: KEW Spigot Male

Max Temperature Rating: 60°C
Foam & Chemical Method: Pressure Washer Foam Lance
Output: Foam
Weight: 0.56 kg

Technical information

Maximum pressure: 180 bar

Maximum flow: 12 litres per minute

Maximum temperature: 60°C

Inlet: KEW Spigot male

Type: Snow foam lance with bottle

Series: LS3

Nozzle: 1.25mm

Bottle: 1 litre

Injector head: Solid brass

Weight: 0.25kg

Country of origin: Italy

Compare similar products

Detail	This product	PA LS3 Foam Nozzle + 1L Bottle, 180 Bar, 12 LPM	PA LS3 1L Foam Lance Bottle Only	LS3 Foam Lance with 1L Bottle – M22 Male, 1.25mm Nozzle (PA Italy), 180 Bar, 12 LPM
Price	£83.30 ex VAT £99.96 inc VAT	£64.10 ex VAT £76.92 inc VAT	£10.20 ex VAT £12.24 inc VAT	£68.70 ex VAT £82.44 inc VAT
Max pressure	180 bar	–	–	–
Max flow	12 LPM	12 LPM	–	12 LPM
Max temperature	60°C	60°C	60°C	60°C
Inlet	KEW Spigot Male	¼" BSP Female	–	M22 Male
Availability	In stock	In stock	In stock	In stock

Delivery & returns

Free delivery on online orders over £200 + VAT to a UK mainland address.

Orders processed by 2pm go out on tracked, insured next-working-day delivery.

Orders under £200 + VAT: delivery £11.99 + VAT.

Returns: ask us for a returns number first. Unused goods in their original packaging can come back at our discretion, less a restocking fee; faulty or wrong items have no fee.

Full delivery & returns details
